120PCS Solder Seal Wire Connectors Kit-Heat Shrink Butt Connectors-Waterproof Wire Connectors for Marine Automotive Aircraft Boat Truck Stereo Wire Joint (Medium-120PCS)
Availability: Pre-Order, Inquiry Price
About this product
*WIDE APPLICATION：Marine Automotive Aircraft Boat Truck Stereo Wire Joint Material：special plastic and some low temperature solder，Use a heat gun to complete the connection if you can.
*FUNCTION：Better Waterproof and Seal Performance: There is two hot melt waterproof adhesive rings in each butt connector, which help it hold up better to moisture., which help it hold up better to moisture.
*Temperature that start to shrink: 80℃,Temperature that solder ring start to melt: 111˚C,Temperature that solder ring melt completely：138˚C,Note: It means the temperature of surface of the connector, rather than the temperature that the hot air gun should set.

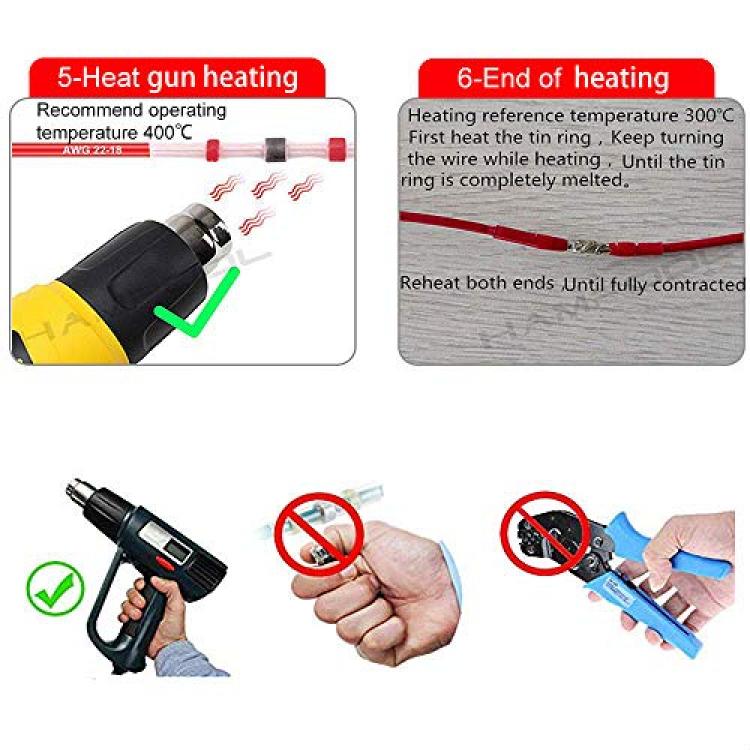

*EASY OPERATION: No need to crimp, just use a heat gun then you can finish the solder connection

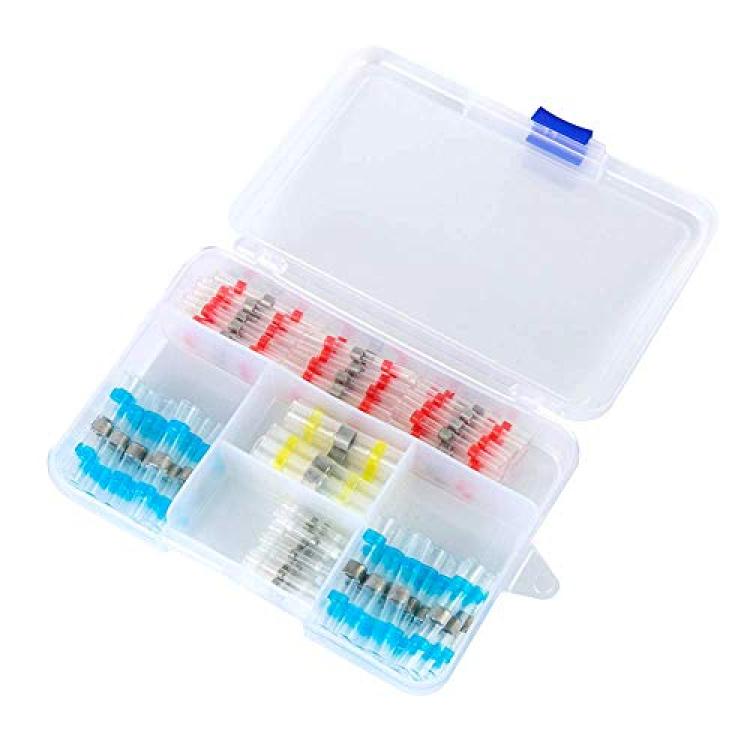

*Package Include:Specific color for specific size, easy to pick up for use. Package Includes 30 White, 40 Red, 40 Blue, 10 Yellow.
Description
Number of Items:120
Operating temperature range:
Operating: -55°C-125°C
Minimum shrink: 80°C
Minimum for solder to melt: 138°C
Specification:
Color: Yellow, Blue, Red, White.

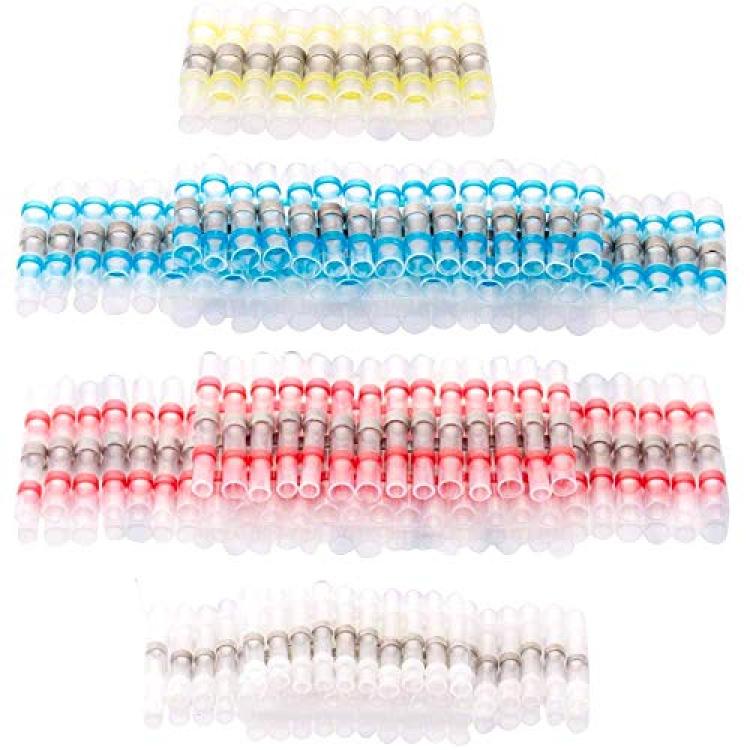

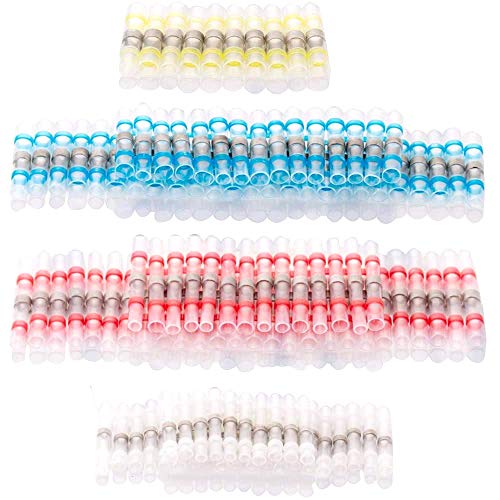

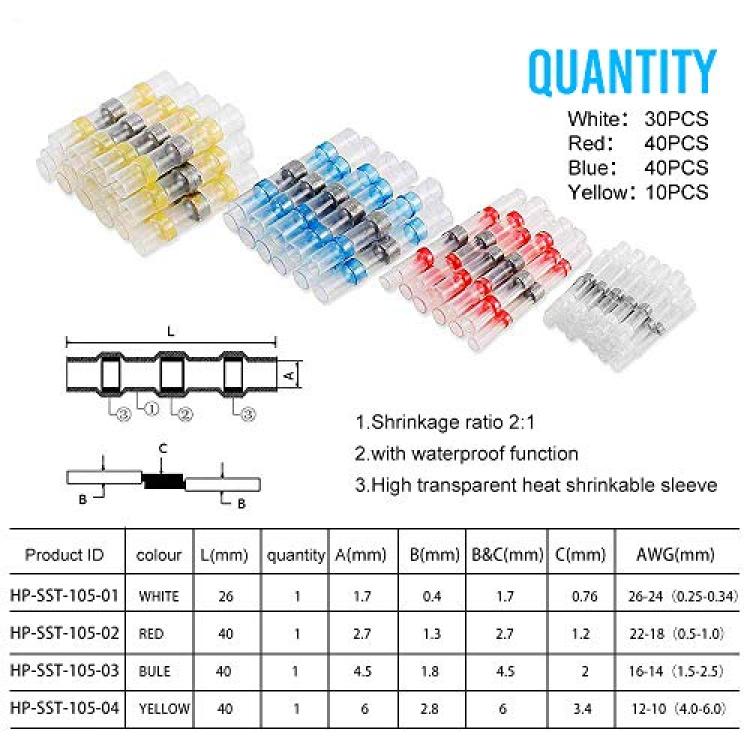

Size:
30 x White Solder Seal Connectors: Diameter 1.7 mm, Cable cross-section 0.25-0.34 mm²(A.W.G.:26-24);
40 x Red Solder Seal Connectors: Diameter 2.7 mm, Cable cross-section 0.5-1.0 mm² (A.W.G.:22-18);
40 x Blue Solder Seal Connectors: Diameter 4.5mm, Cable cross-section 1.5-2.5 mm² (A.W.G.:16-14);
10 x Yellow Solder Seal Connectors: Diameter 6.0 mm, Cable cross-section 4.0-6.0 mm² (A.W.G.:12-10)
200 x black heat shrink sleeves are complimentary.
