40 Amp 4 Pole NC Normally Closed Lighting Contactor IEC 120V Coil 934004
Availability: In Stock
About this product
*40A Resistive Load, 4 Normally Closed Contacts 32Amp
*Coil Voltage 120VAC, Inrush 62VA, Sealed 12VA

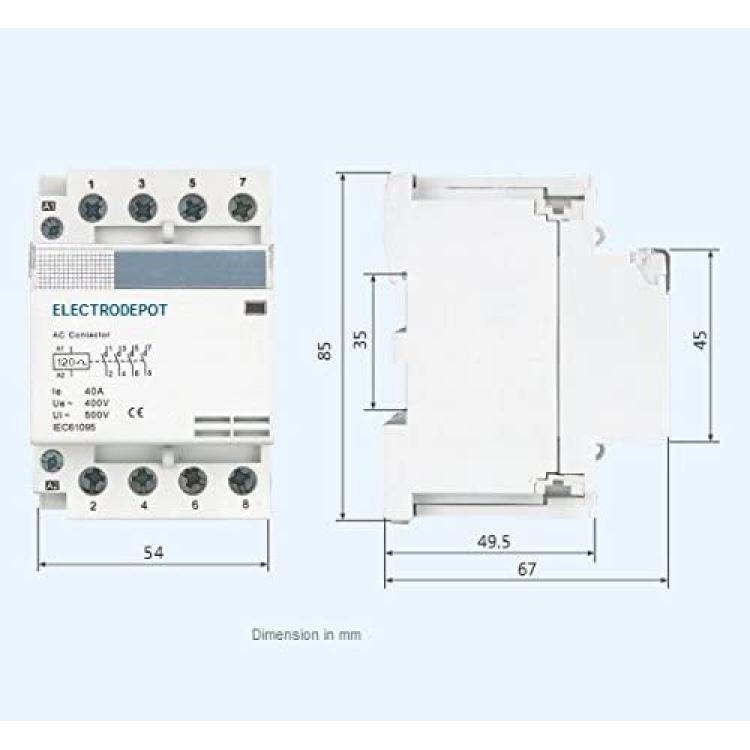

*Modular 2.2 x 3.3 x 2.5 inches, DIN rail mount
*Compliance: CE, and IEC/EN61095 DIN AC1 40A AC3 32A
*Wiring: Solid Conductor: 25 mm2 Max torque 0.6 Nm Stranding Conductor: 16 mm2, Max torque 0.6 Nm
Description
40 Amp 4 Pole 500 VAC Contactors - NC Contacts Energy saving low power drain save 120kwh/year 93 is an electrically held lighting contactor. This may eliminate the need for a more expensive latching contactor FEATURES DIN rail mounting 40 A. Incandescent or resistive load 25 A. Ballast and General purpose Power ON indicator Coil: 12VA inrush, 4VA sealed Normally closed (N.C.) contacts IEC AC Rate: AC-1; 16 kW, AC-3; 11 kW @400V Operating Temperature -30...+70 °C (-22...+158 °F) Solid Conductor: 25 mm2 Max torque 0.6 Nm Stranding Conductor: 16 mm2, Max torque 0.6 Nm, - Electric strength: 4 kV Max switching capacity 600 switch/hr. low humming coil, low noise CE approved 61095, Weight: 0.88 lb (0.42 kg)
