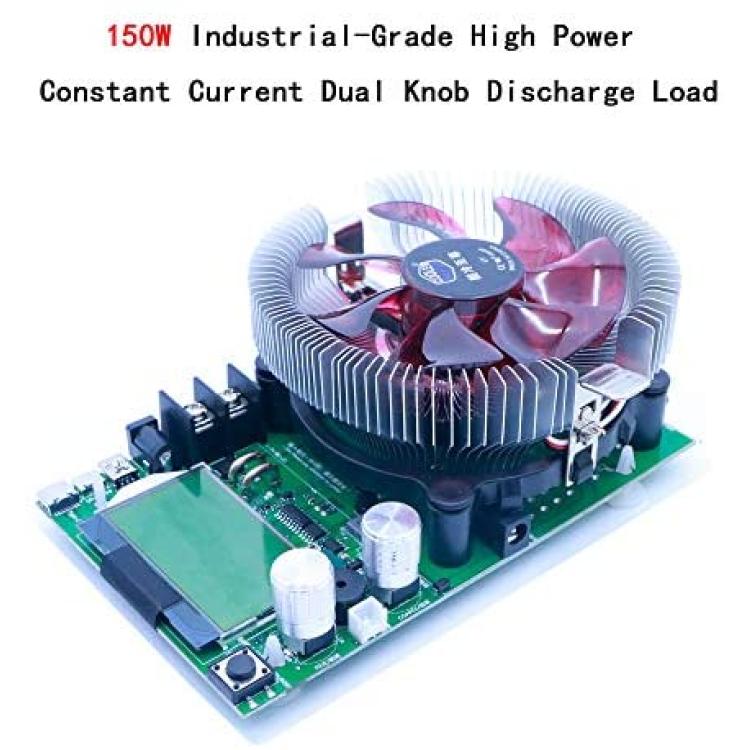

150W adjustable constant current electronic load industrial-grade USB electronic load tester high-power constant current double-knob discharge load battery capacity tester

Features:
Made of high quality material, solid, durable and practical, good performance and long lasting.
LCD screen, display information comprehensively and clearly.
Configuration of intelligent fan can dissipate the heat effectively and quietly.
Load maximum power 150W, max voltage 200V, max current 20A.
Over voltage, over current, and over pressure alarm can protect the module from damage effectively.

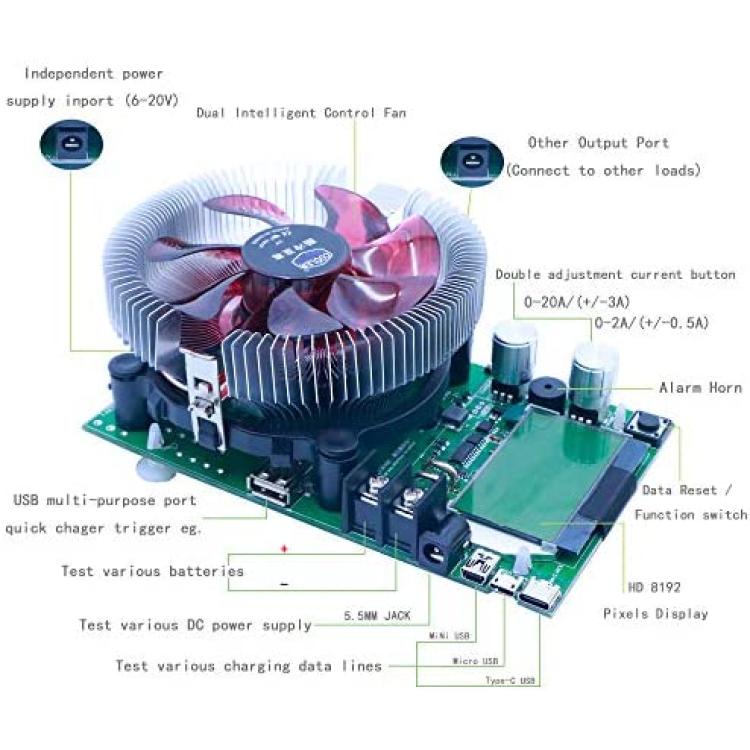

Widely used for testing various batteries, DC power supply, and charging data lines.

Product Parameter:
Input/Output Interface: 100A high current bite screw column
Voltage Measurement Range: 0.00V-200V
Current Measurement Range: 0.00A-20A
Capacity Accumulation Range: 0-999.999Ah
Power Accumulation Range: 0-9999.9Wh
Power Measurement Range: 0000.00-150W
Impedance Measurement Range: 1-999.9 ohms
Temperature Measurement Range: 0-99?/32-210.2?
Timing Maximum Time: 999 hours 59 minutes 59 seconds
Timing Measurement Reminder Setting: countdown 24-hour arbitrary setting

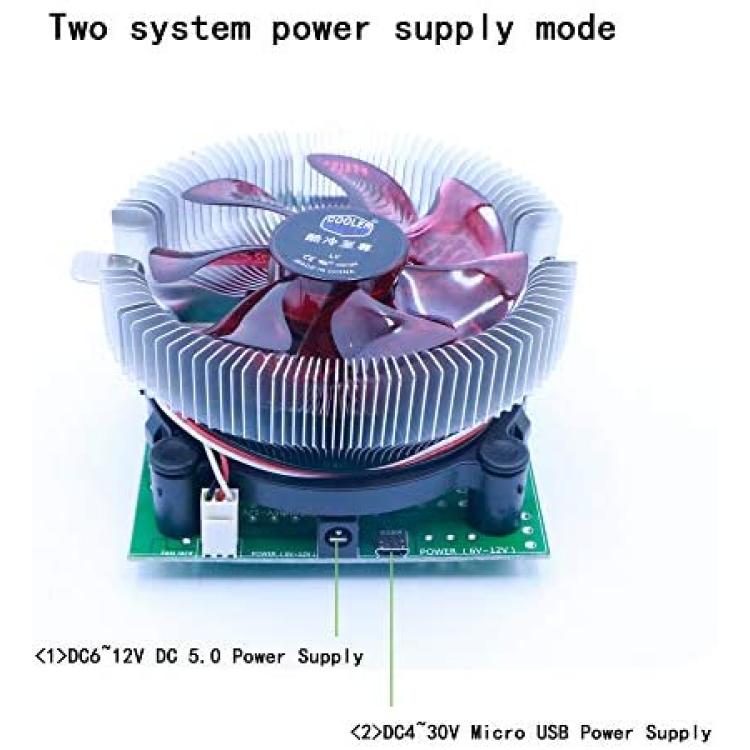

Small Current Standby Remind Parameter and Timing: Less than 2W/0.5 hours; Over 0.5W to start timing, DC 4-30V supplies power to the measurement system
Refresh Time: Over 500mS/time
Measurement Rate: About 0.5 times/sec
Overvoltage and Overcurrent Setting Alarm Mode: Display warning interface to remind users
Overvoltage Reminder Setting Range: 1-200V
Low pressure Reminder Setting Range: 0-190V
Overcurrent Reminder Setting Range: 0.2-100A
Display Type: Micro-power LCD module LCM black font green backlight Chinese and English display
Working Temperature: -10 - +60?/14 - 140?
Working Humidity: 10 - 80 (No glazed frost)
Working Pressure: 80 - 106kPa

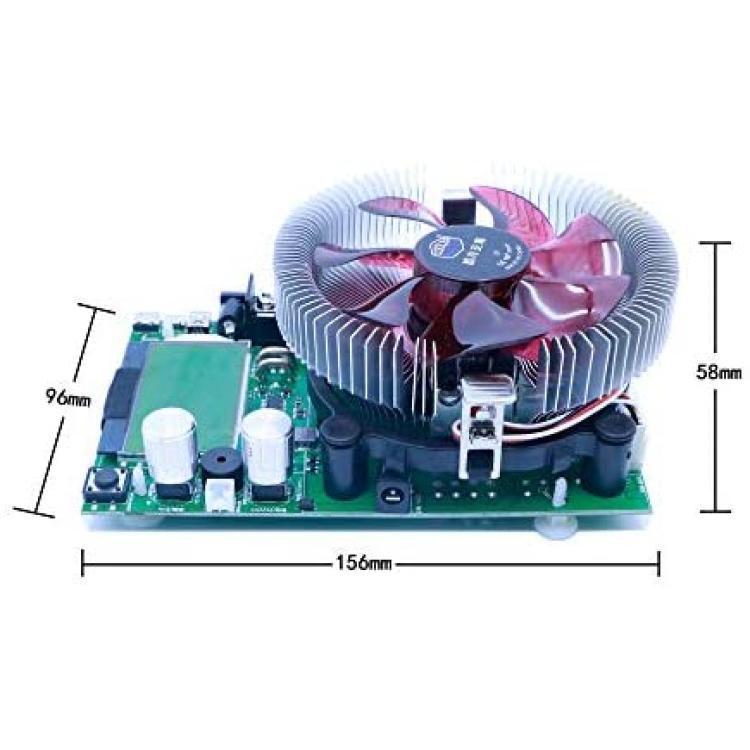

Size: 15.6 x 9.6 x 5.8cm/6.14 x 3.78 x 2.28in

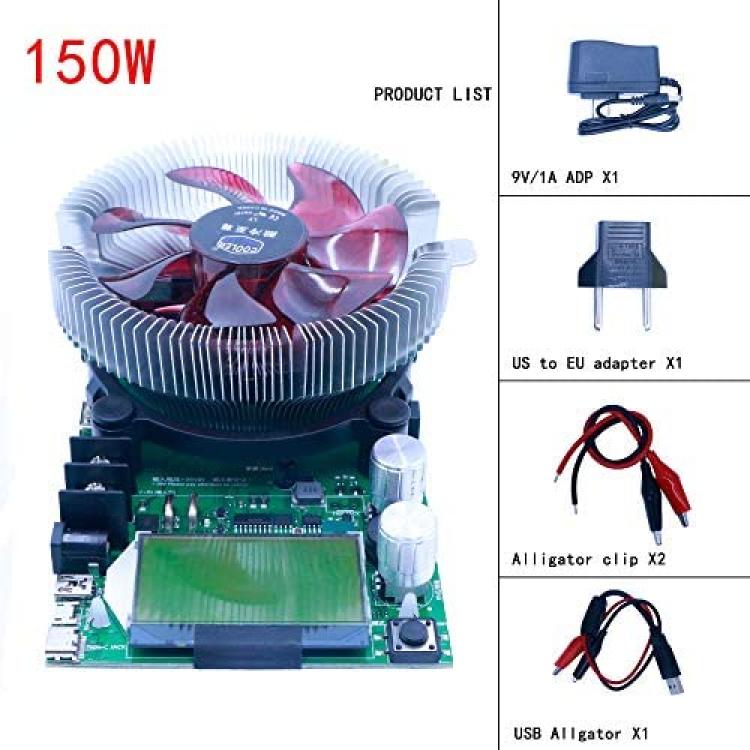

Package includes:
1 x Electronic Load Tester
