Westshine 16CH 5MP/1080P Network Video Recorder 16 Channel CCTV NVR, Onvif P2P Quick QR Code Scan, Easy Remote View, HDMI/VGA Output, Hard Disk is Not Included and No Built-in WiFi
Availability: In Stock
About this product
*【H.265 HEVC】H.265 High Efficiency Video Coding, save bandwidth for 70% than H.264, increase storage and transmission efficiency. Cost effective acquisition. POE switch is not built in, allowing you to upgrade just the “brain” in the future without the need to purchase a POE switch again because it is not built in.
*【Easy Remote view】Plug & Play setup, Easy to configure, access and control. Scan QR Code on NVR from "Xmeye" app to instantly access live viewing and playback. With included CMS/VMS software. Connects to and manages all the cameras on your network for ultimate ease and convenience in a home security system.
*【Onvif】Wide compatibility with IP Cameras supporting ONVIF protocol. The NVR supports ONVIF 2.0 to 2.4 compatible cameras, which may have limited motion detection and PTZ support depending on camera manufacturer. We recommend using Evtevision cameras to be sure you have a fully compatible troublefreesetup.
*【Hard drive is NOT INCLUDED】Hard drive is required for recording and playback. Supports 2.5/3.5-Inch SATA 500GB to 6TB internal surveillance hard drive, We recommend using surveillance hard drive only from Western Digital Purple, Seagate Skyhawk or Toshiba Surveillance. Other types of hard drives may cause your NVR to stutter, skip, freeze and will prematurely fail due to constant writing conditions.
Description
Overview
Westshine 16 Channel H..265 5MP NVR Supports 16 Channel 5MP/1080P Onvif IP Cameras, Easy remote view from IE Browser/Mobile App(Xmeye)/CMS; Super high resolution good for your home and business surveillance.
Main Features:
* Super High resolution 5MP,supports 16 channel 5MP IP Cameras
* Advanced H.265 video compression technology
* Smart search playback to easy locate incident videos

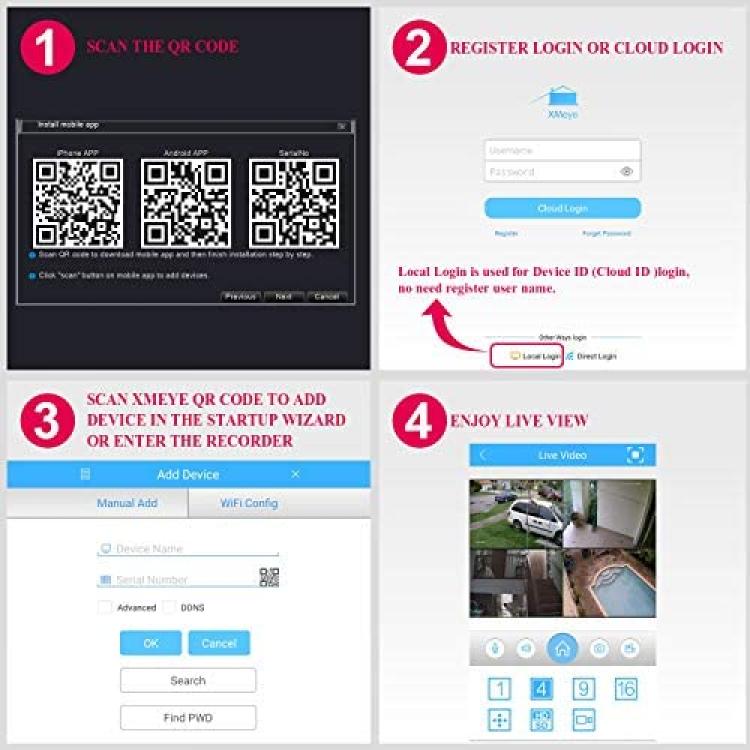

* Quick Access QR Code Remote Viewing on iOS & Android devices (w/ Xmeye app)
* Feature-Rich OSD: Camera Name, Time, Motion Detection, Video Loss, Lock, and Record Status Icons

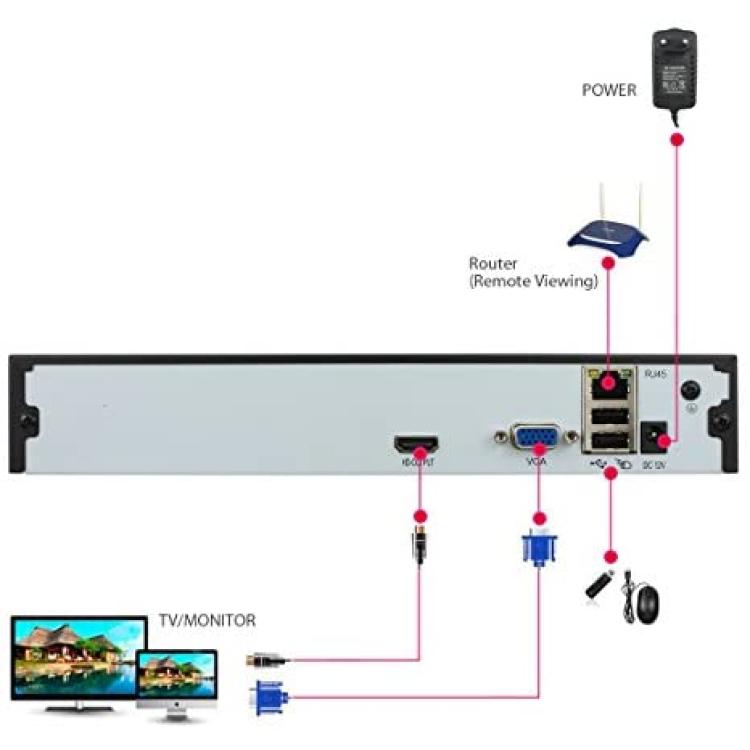

* HDMI and VGA output both support 1080P
Specifications:
?IP Video input?: Max 16ch 5MP
?HDMI/VGA output?: Support up to 1080P
?Audio input/output?: No audio input/1CH RCA output
?Video compression standard?: H.265/H.264
?Preview?: 16ch* 5MP@15fps,8ch* 5MP@30fps,16ch* 1080P@30fps
?Local Playback?: 1ch 5MP/2ch 1080P

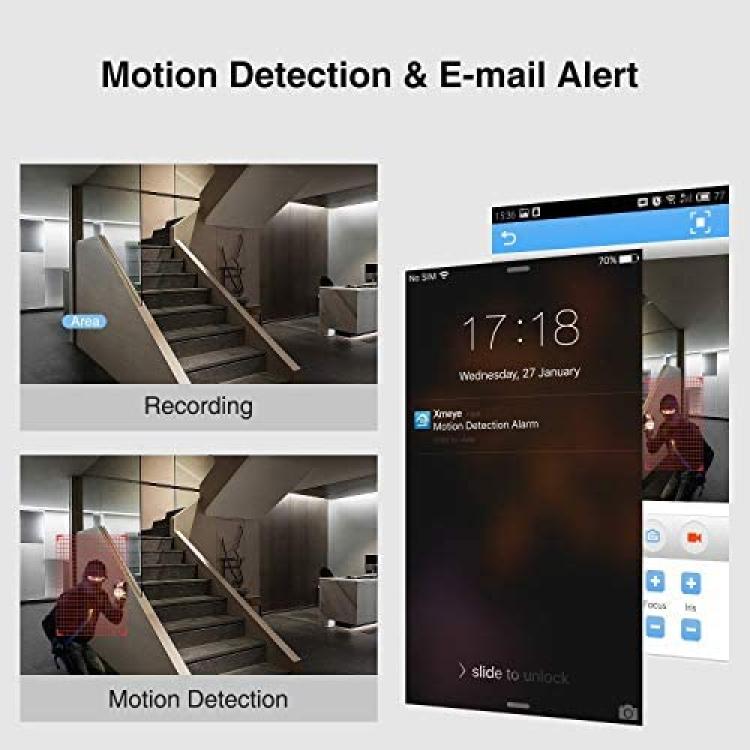

?Record Mode?: Manual, Alarm, Motion detection, Timing
?Back up mode?: Network, USB portable HDD,USB DVD-RW
?Video Standard?: PAL/NTSC
?Interface Type?:1 SATA Interface(Max support 1x 6TB HDD)
?Network Interface?: 1 RJ45 10M/100M adaptive Ethernet Interface
?USB Port?: 2xUSB 2.0 interface
?Power Supply?: DC12V/2A
Package
1x CCTV NVR(Hard Disk is Not Included)
1xDC 12V/2A Power Supply
1x Mouse
1xManual
Note: Hard Drive is not included in Package
Notes
1.Default login user name is admin,you must be set password for device ,Otherwise you can not access to system
2.IP Camera only support ONVIF.
