4 Set Cup Turner Kit Accessories for Crafts Tumbler,Includes Synchronous Turntable Motors,Coupling Connectors,Pipes Cap, Switch Cords - Ideal for Cuptisserie,Tumbler Cup Rotator Machince (2.5-3RPM)
Availability: In Stock
About this product

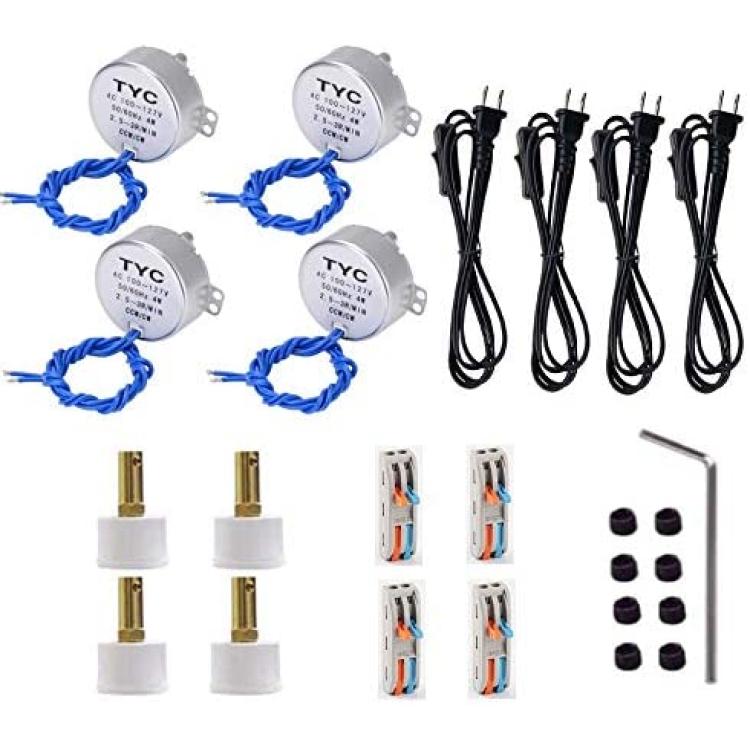

*Packaging List: 4×Cup Turner Motors + 4×Swithc Cords +4×Connector Terminal + 4×7mm Coupling Connectors with 30mm length+ 4×PVC Cap + 8×Screws + 1×Spanner. Pefect for cup turner, cuptisserie, Tumbler cup rotator, heater machine, drying the epoxy. With this thoughtful kit, you can save your time and money, effort to design your own cup turner.

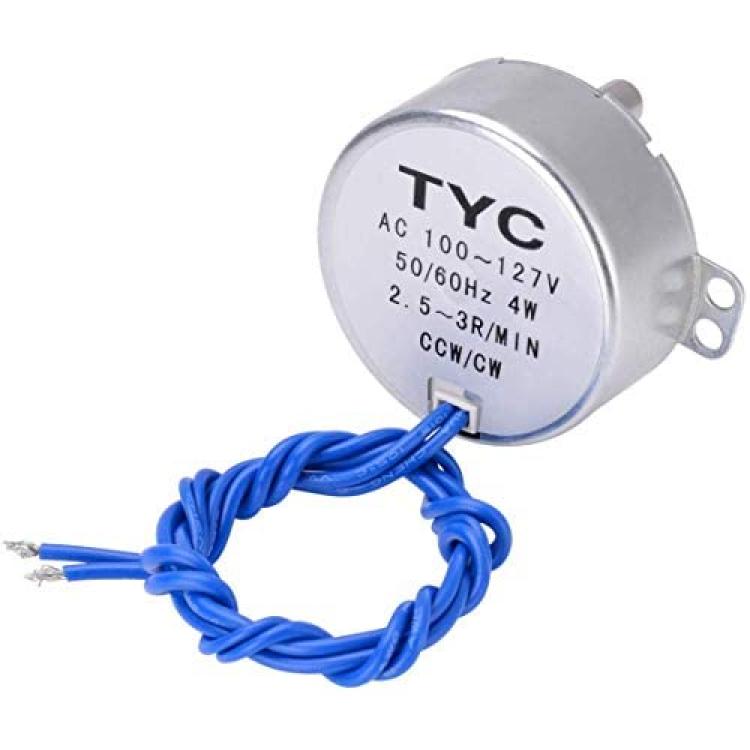

*Motor: 4 pcs synchron Motor speed: 2.5-3R/Min; Voltage: AC 100V to 127V; Frequency: 50/60Hz; Power: 4W; Manner of working: CCW/CW.

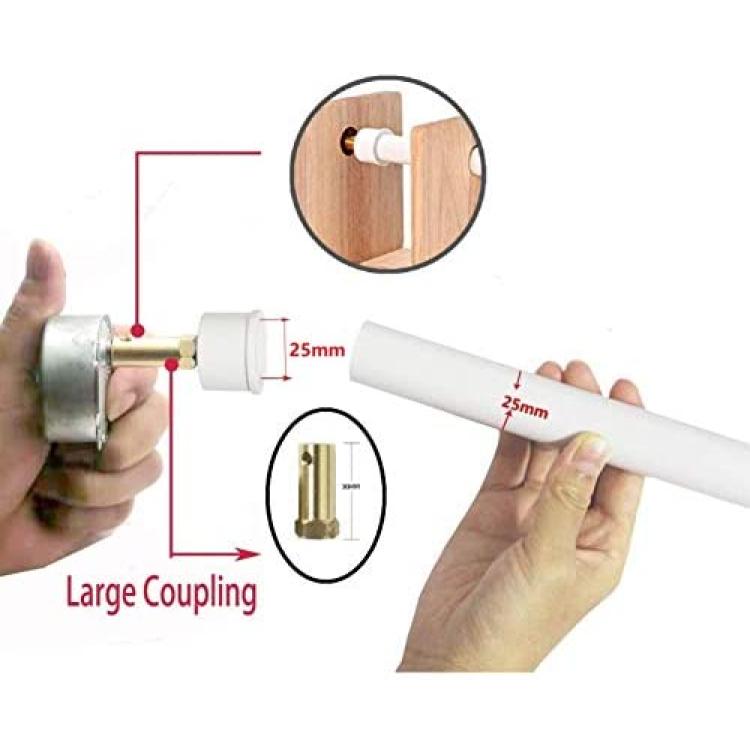

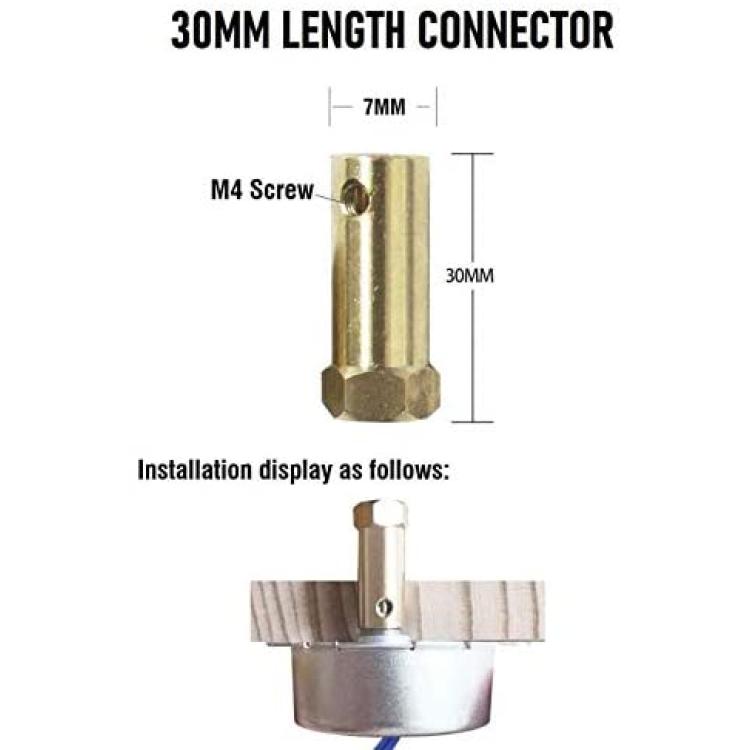

*Flexible Coupling Connector: Brass material 7mm/0.275 in length hexagon motor flexible coupling with DN25 pipe cap. The length of the coupling is 30mm, so as to avoid misalignment of the holes, which is suitable for different types of adapters.

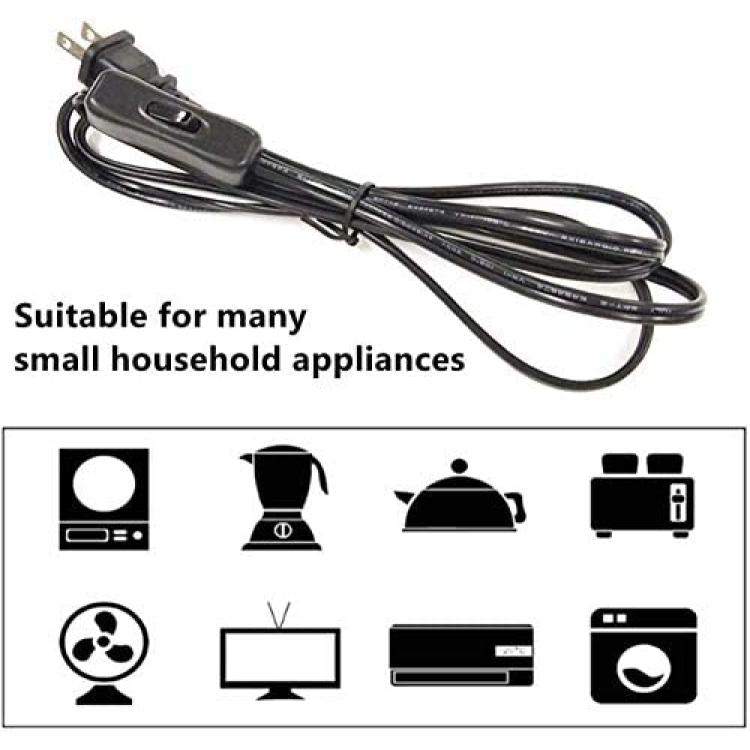

*6 ft Power Cord Switch Plug and Quick Connector Terminal: The outer part of the extension cord is made of PVC plastic, the inside material is pure cupper and twin-cored;
*Multiple applications: Widely Used for cup turner,cuptisserie, Tumbler cup rotator, heater machine, christmas tree, Dynamic Visualizer ,Arts & Crafts lighting rod dryer, massagers, drying the epoxy, popcorn machine
Description
4 Set Cup Turner motor Kit Accessories for Crafts Tumbler,Includes Synchronous Turntable Motors,Coupling Connectors,Pipes Cap, Switch Cords - Ideal for Cuptisserie,Tumbler Cup Rotator Machince
Description:
Synchronous motor is a kind of common AC motor.
Exciting winding use the DC excitation current, the establishment of magnetic field.
The armature winding of three-phase symmetrical action use as the power winding.
The armature winding and the main magnetic field is doing the cutting movement.
Specification:
Rated power: 4 watts
Voltage: AC 100-127 V
Frequency: 50/ 60 Hz
Rated speed:2.5-3R/MIN
Manner of working: CCW/ CW

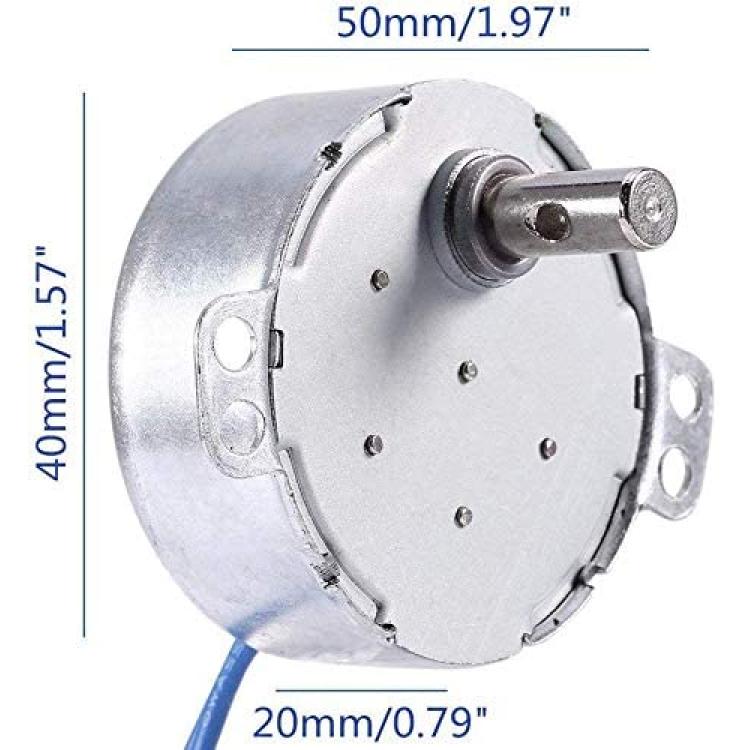

Motor size: 1.9 inch/ 4.8 cm in diameter, 1.57 inch/ 4 cm in height
Cable size: 0.08 inch/ 2 mm in diameter, 15.7 inch/ 40 cm in length
Shaft diameter: 7 mm
Shaft length: 30 mm
Color: silver
Package includes:
4 x 5-6RPM Turnable synchronous motor
4 x brass material hexagon motor flexible coupling/1x Allen Wrench/8 x Screws
4 x 6ft switch cord
4 x Quick connection anti-shock terminal block
4 x DN25 pipe cap
