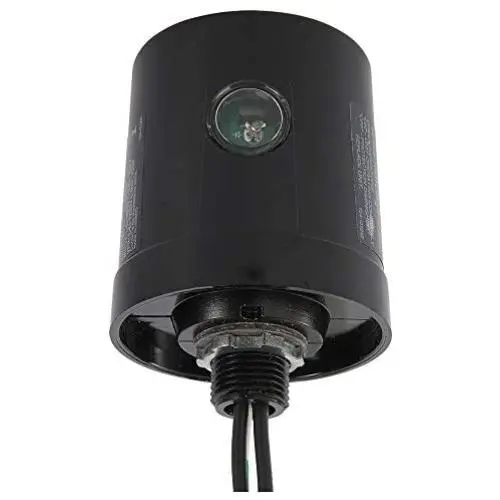

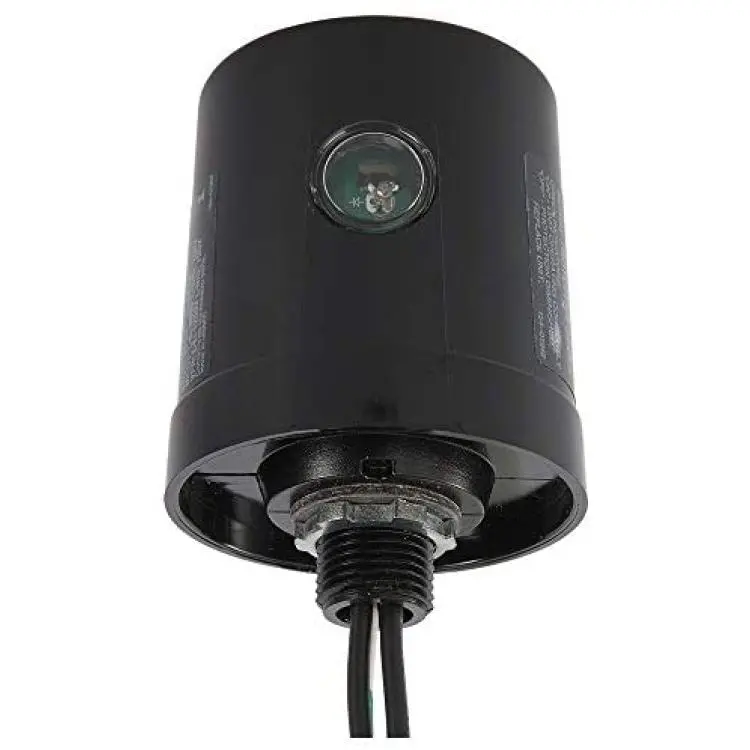

Intermatic AG2401C3 Single Phase Type-1 Surge Protection Device, Black

106. 4 MILLIMETER HEIGHT SIZE; SERVICE ENTRANCE AND UTILITY METER CABINET USED ON; 50/60 HERTZ FREQUENCY RATING; 18 INCH 12 AWG 3 LEAD WIRE CONNECTION TYPE; ANSI/UL 1449, CSA APPROVAL; LIGHT COMMERCIAL, OUTDOOR, 3-PHASE ROOFTOP HVAC UNIT APPLICATION

The AG Series Surge Protection Devices are designed for outdoor installations on service entrance panels and utility meter cabinets. This series is also approved for applications such as irrigation equipment, pumps, lighting fixtures, traffic signaling devices, farm equipment, HVAC controls and motors. Parallel MOVs from each line to grounded neutral provide increased product capability. Molded polycarbonate housing is weatherproof and UV resistant. The 12 gauge leads are 18-Inch long and color coded for easy wiring. The AG2401C3 is designed for 120/240 Volt single phase applications and meets the ANSI/UL1449 3rd Edition requirements. Green LED light indicates the product is energized and protecting your valuable electronic devices.
