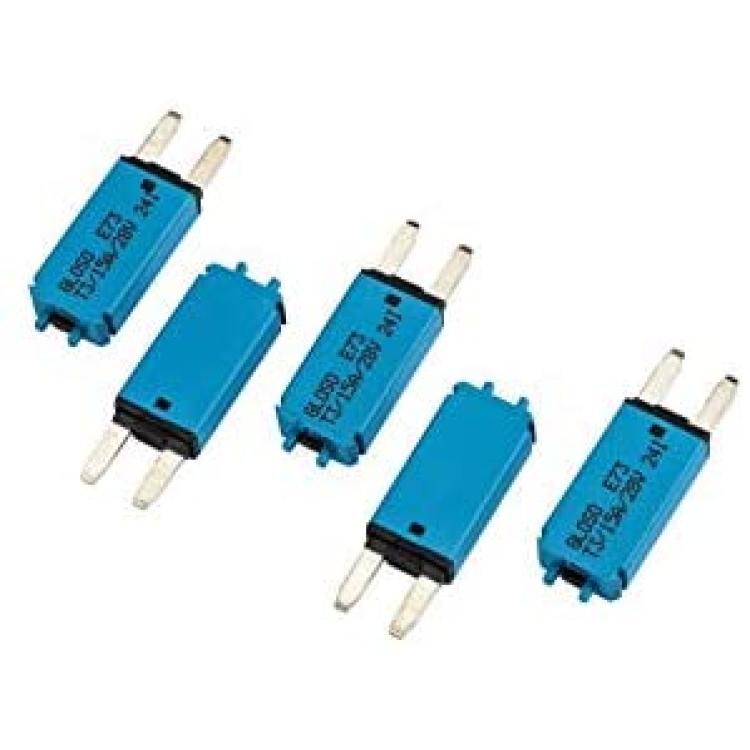

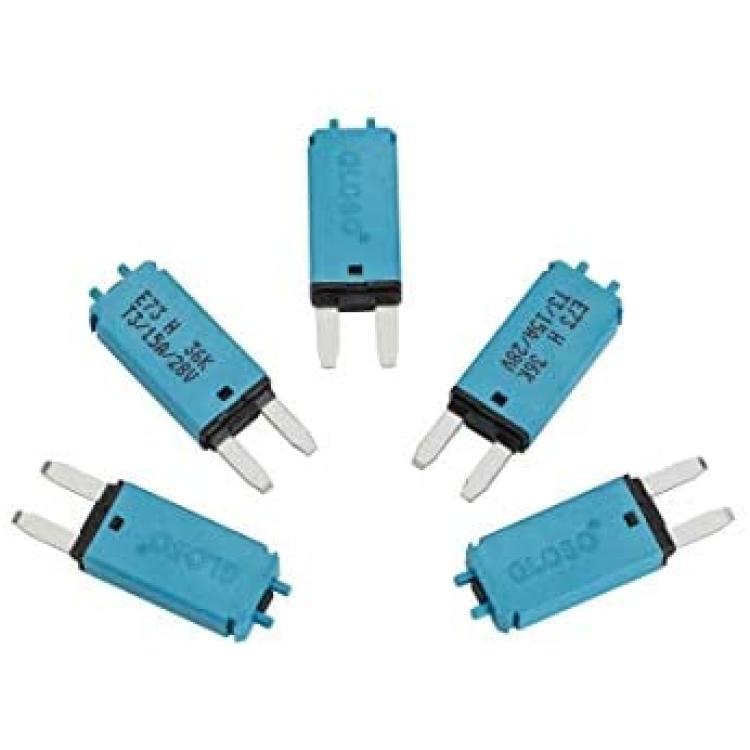

GLOSO E73 Mini ATM 15 Amp Circuit Breakers Manaul Reset (T3) - 5 Pack (15A)
About this product
*15A @ 28Vdc - 5 Pack
*MINI/ATM Manual Reset (T3) Circuit Breakers
*UL-Rated 94V0 thermoplastic body. Tin-plated copper alloy terminals
*Termination: Compatible with 280 Type fuse blocks using 0.32" (8.1mm) centerline spacing
*Compliances: SAEJ553
Description
The height (excluding terminals) of this mini breaker is 1.02" (26 mm). The breakers are taller than traditional mini fuses and may not fit into some fuse holder/boxes
Single Pole Thermal Type Breakers Rating: 15A, 28Vdc (5 Pack)
Operating Temperature Rating: –40°F (–40°C) to 185°F (85°C)
Storage Temperature Rating: –40°F (–40°C) to 260°F (125°C)
Materials: UL-Rated 94V0 thermoplastic body. Tin-plated copper alloy terminals
Marking: Cover is color-coded to amperage ratings
Termination: Compatible with 280 Type fuse blocks using 0.32" (8.1mm) centerline spacing
Compliances: SAEJ553
