Hall Effect Potentiometer Angle Encoder Sensor 360 Degree 6mm Shaft Analog 0-5v Output

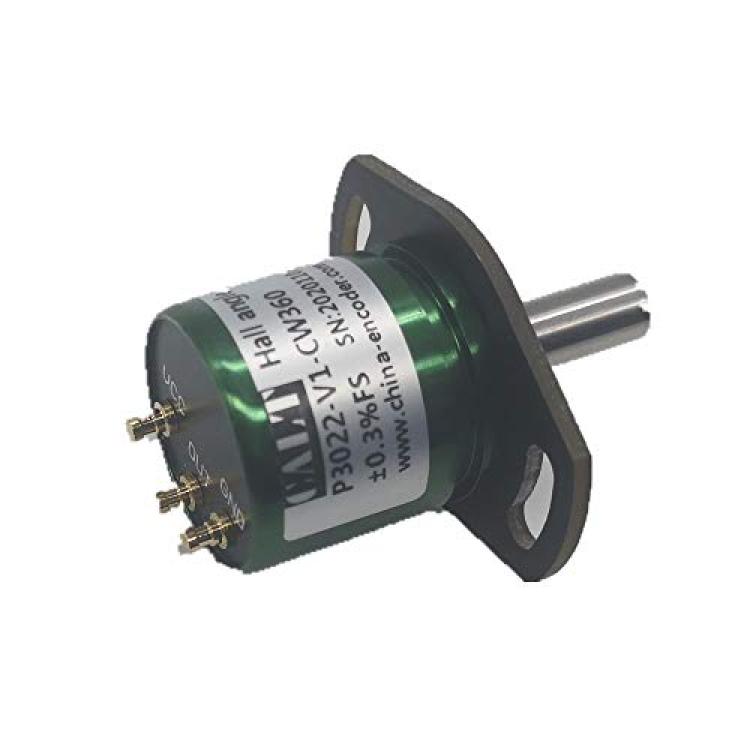

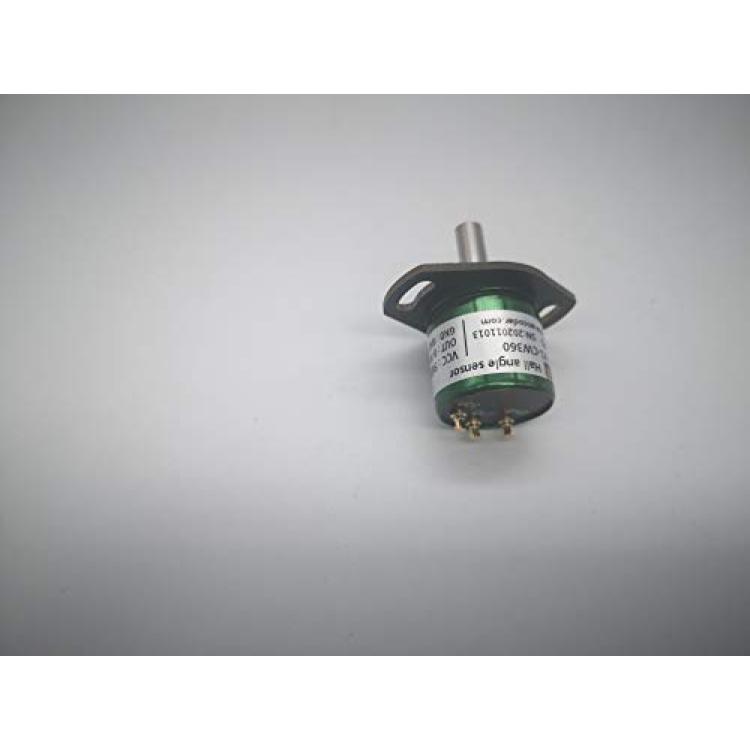

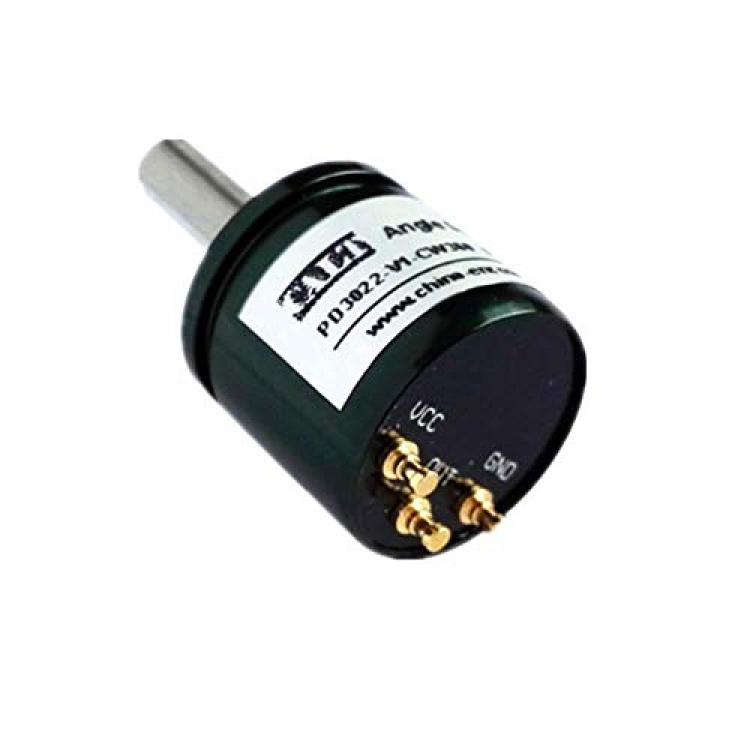

Contactless Digitized Angle Sensor P3022-V1

P3022 series of miniature non-contact angle sensor works through the principle of electromagnetic induction, the angle is converted to an electrical signal. When the rotation angle of the object passed to the axis of rotation sensors, P3022 angle sensor outputs an electrical signal that is proportional to the rotational angle. P3022-V1 is rotated clockwise output corresponding to 0-360 0-5VDC.

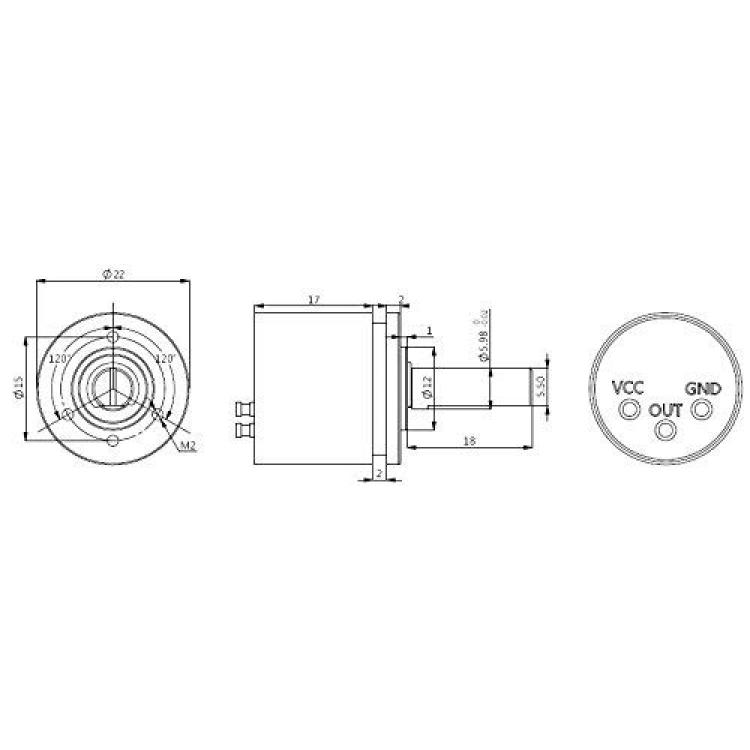

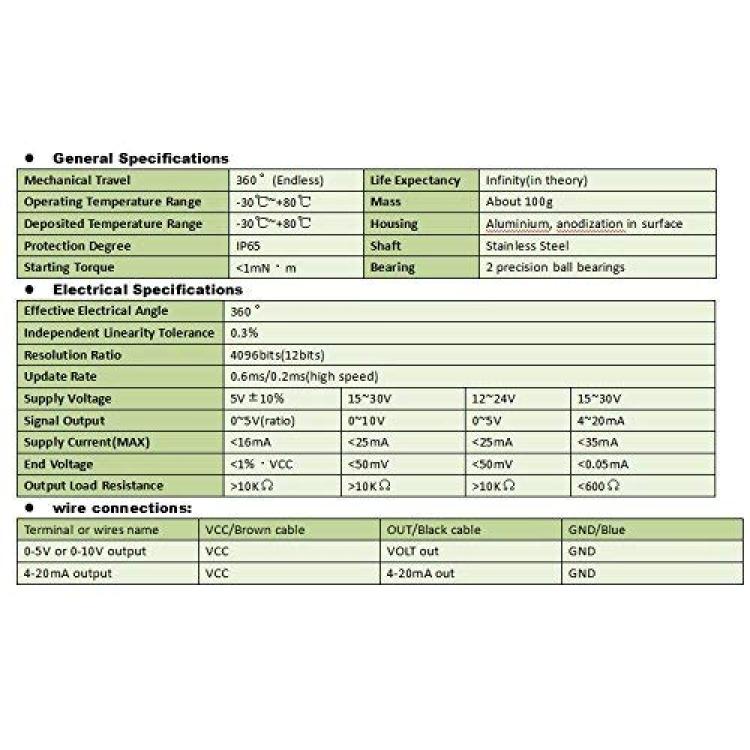

Outer diameter:22mm
Shaft diameter:6mm
Voltage supply:5V DC
Signal output:0~5V
Resolution ratio:4096(12bits)
Effective electrical angle: 360degree
Independent Linearity tolerance:0.3%

Mechanical Travel: 360 degree (Endless)
Protection Degree:IP40
Starting Torque: <1mNm
Housing:Aluminium, anodization in surface
Bearing:2 precision ball bearings
Shaft: stainless steel
Mass: About 30g
