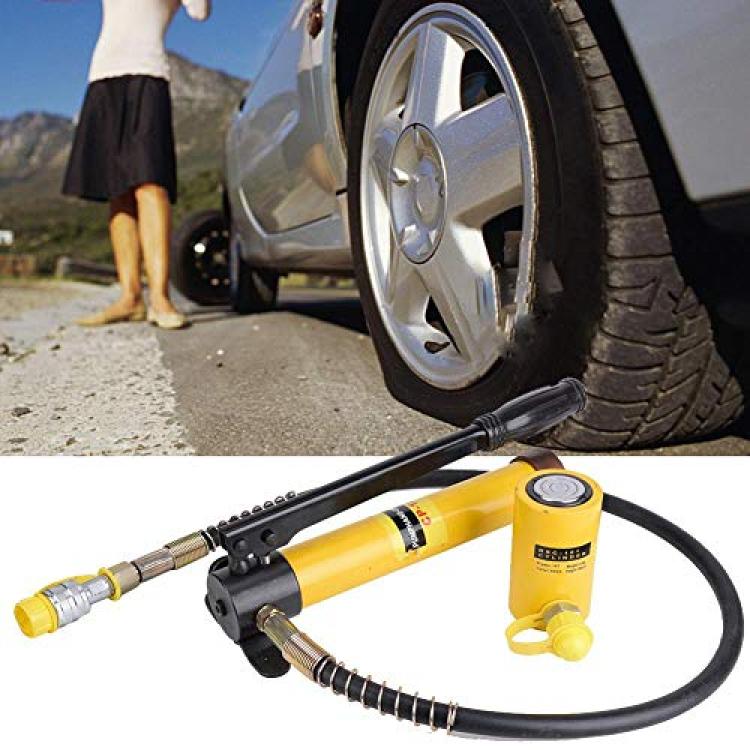

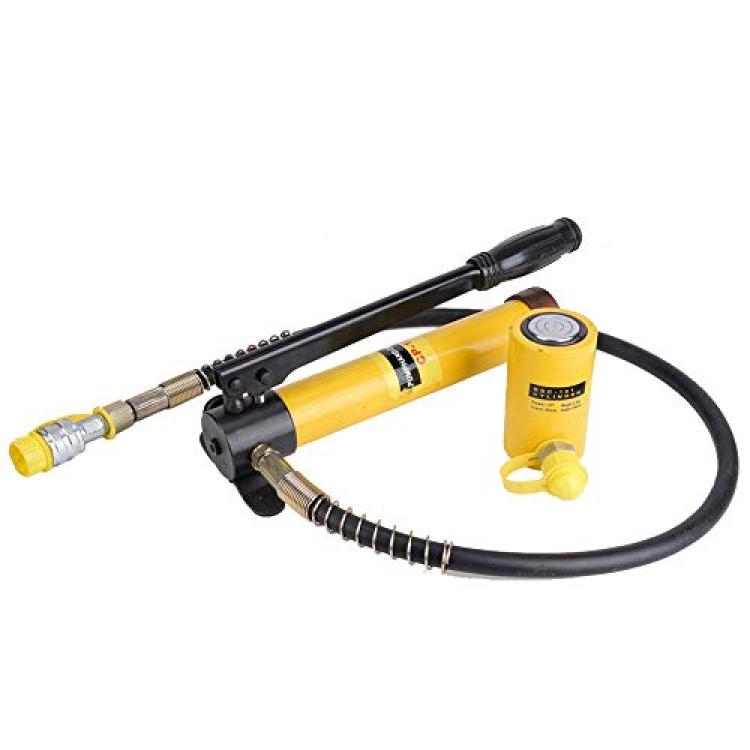

10T Hydraulic Jack, 10T Short Jack + Manual Hydraulic Pump Set Steel Lifting Handle Tool for Car Repairing
Availability: Pre-Order, Inquiry Price
About this product
*♚♚♚ 【Hydraulic Cylinder Apply To】 - Ideal for a variety of car repairs, bodywork, chassis repairs and construction work, etc.
*♚♚♚ 【Intelligent Design】 - The hydraulic cylinder and hydraulic pump are separated for easy transportation or moving.
*♚♚♚ 【High Quality Hydraulic Pump】 - Made of high quality material, durable and long service life. The maximum load of the hydraulic cylinder is 10T.
*♚♚♚ 【save energy】 - Long-handled hydraulic pump saves more energy during operation.
*♚♚♚ 【Specification】 - Cylinder inner diameter: 45mm, Cylinder outer diameter: 63mm, Stroke: 50mm, Body size: 108mm
Description
Feature:
Specification:
Item Type: Hydraulic Jack, Manual Hydraulic Pump
Material: Cylinder 45# Steel, Piston 40Cr Steel
Hydraulic Jack Parameters:
Tonnage: 10T
Effective Area: 15.89cm²
Cylinder Inner Diameter: 45mm
Cylinder Outer Diameter: 63mm
Stroke: 50mm
Body Height: 108mm

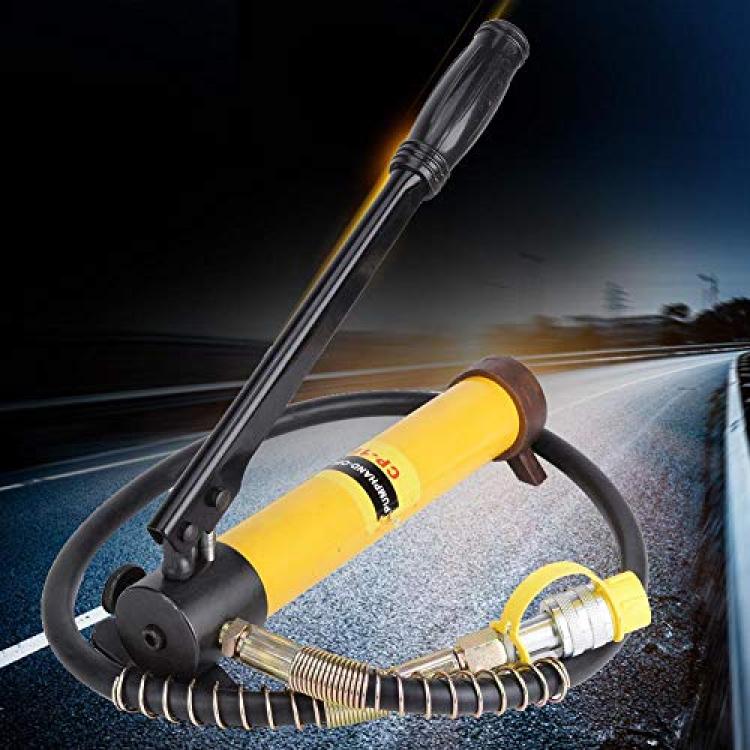

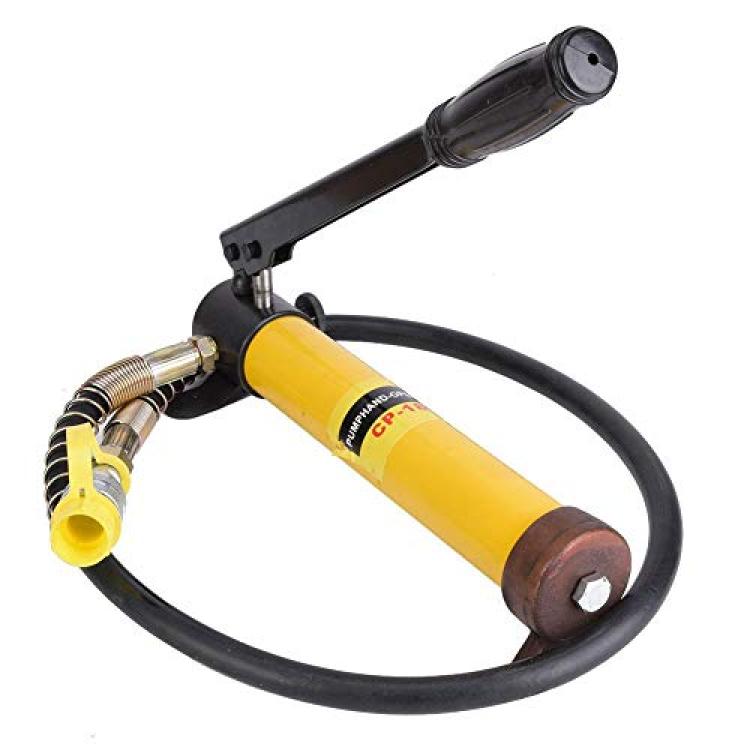

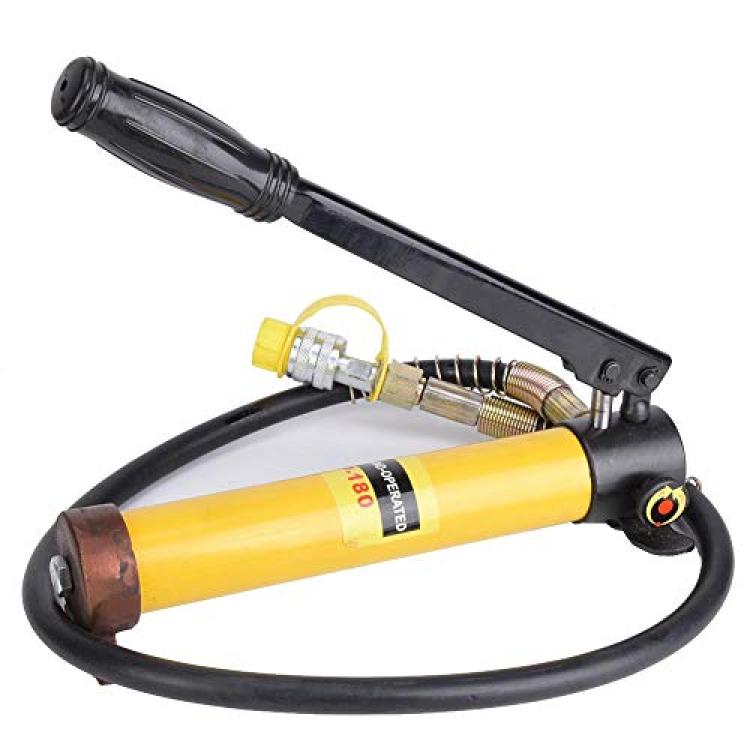

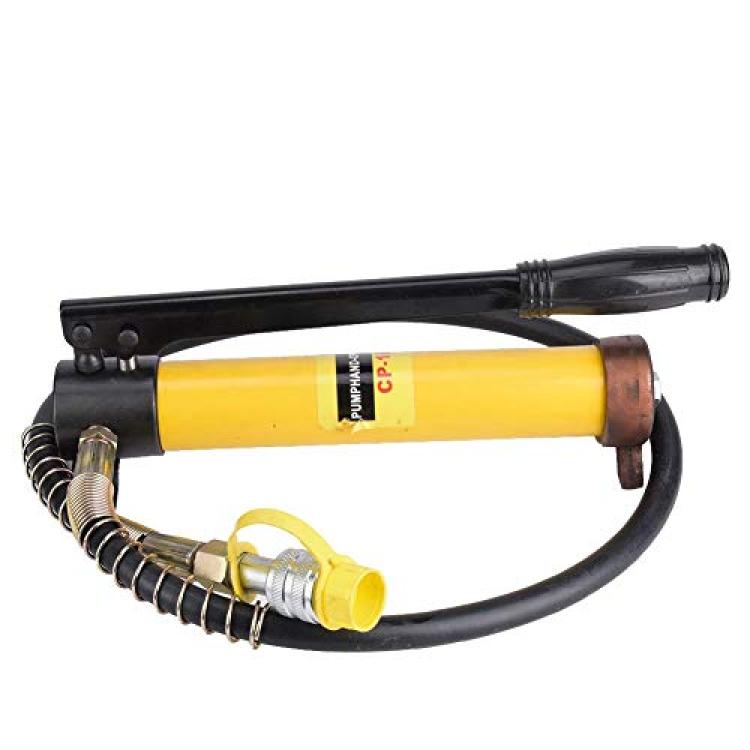

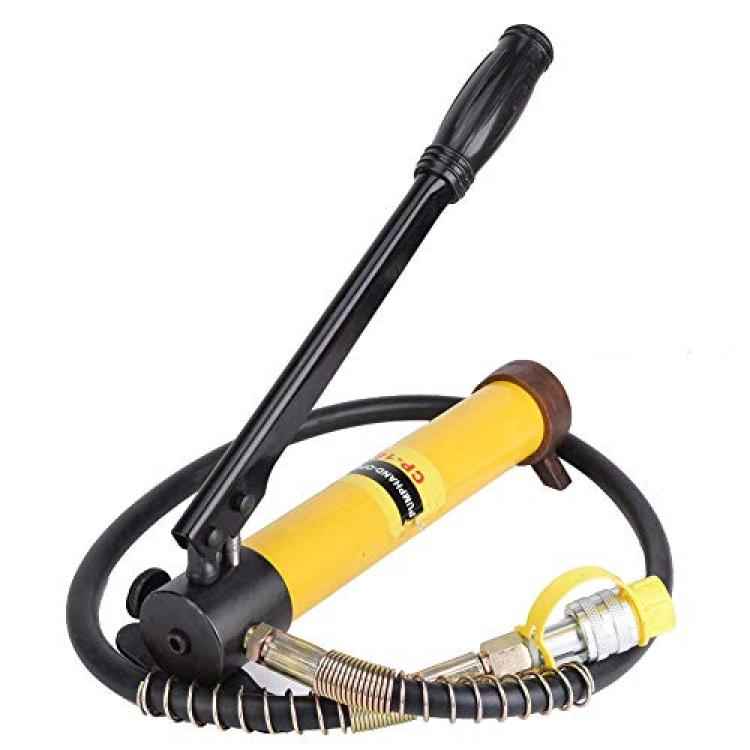

Manual Hydraulic Pump Parameters:
Oil Storage Capacity: 350CC
Function Description:
Operating Output Pressure: 700Kg/cm.

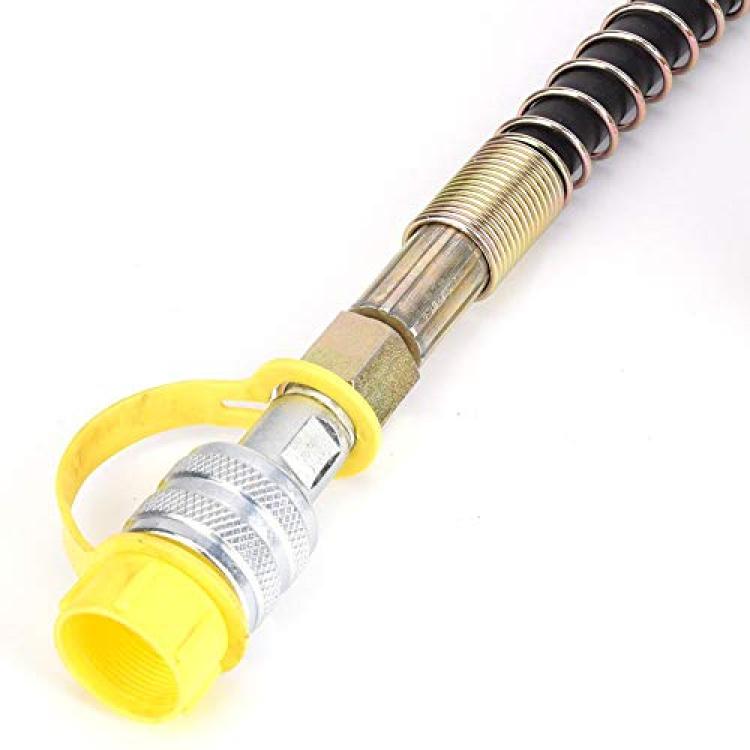

It adopts 1.2M high pressure oil pipe with quick connector.
Use R32R Special Grade Oil Or SHLLT-15.
Zg3/8 thread.
Oil must be changed every six months
Package List:
