TECHTONGDA 110V 1600W Multi-Color Screen Printing Flash Dryer Carbon Fibre Heating Heads with Sensor Switch Universal Dryer Temperature Adjustable

DESCRIPTION

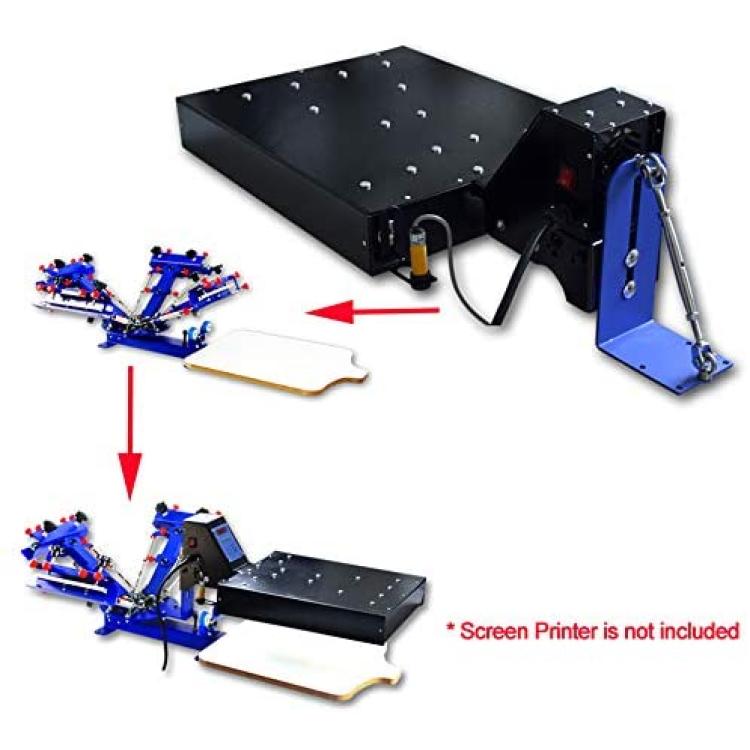

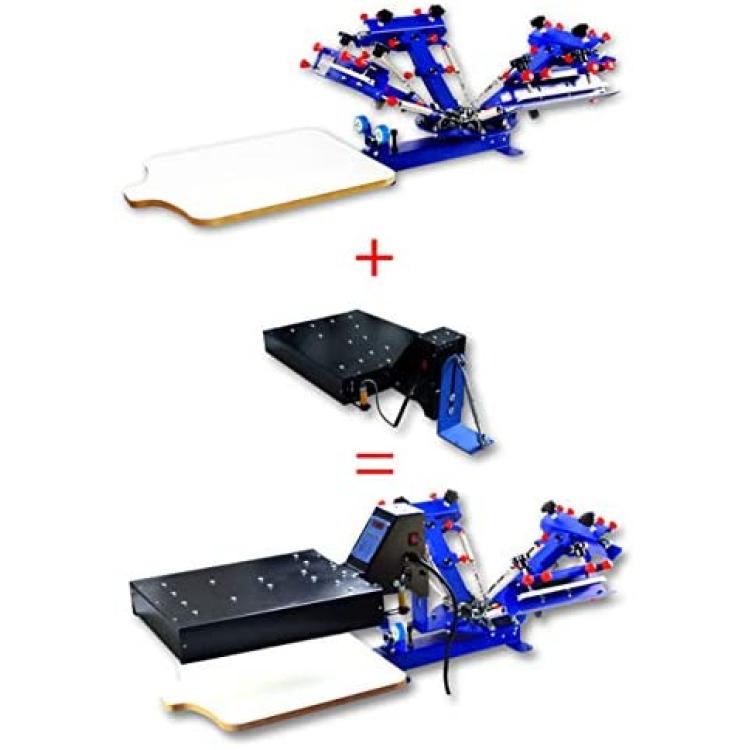

    This model flash dryer is used to install with a screen printer. It could be installed on the bottom base of a printer then you can rotate it above your pallet and curing ink immediately. Saving time and cost.

    Features

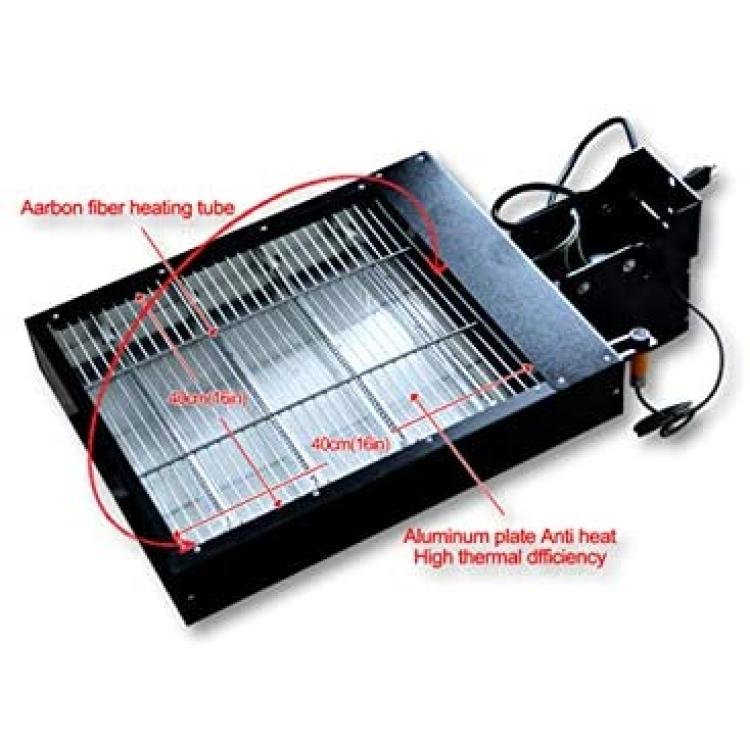

1600W carbon fiber heating element, normal working  over 10000 hours.
The dryer can be adjust 4 inches up and down according to the drying requirements.
The original four color machine can print only three color after refit; and the original six color machine can print only five color after refit. If you don't need drying function, just need to reinstall the original frame arm.

Specification
   Drying box size: 15.7 x 15.7 inches (40cm*40cm) Power:1600W Voltage: 110V
Net Weight: 31lb / 14kg
Gross Weight?33lb/15kg
Packing size: 31" x 19" x 8" (80*47*20 cm)

Test Data
  When the distance between dryer and shirt is 3cm, temperature is 180C (374F)
When distance is 5cm, temperature is 170C (3256F)
When distance is 7cm, temperature is 160C (320F)

Photoelectric sensor switch adjustment:
  1. Switch on, move induction object, when detector sensing the object, display panel will shows "o" ,  it mean the distance is suitable and machine start to work. Taking away the object, flash dryer will shows "F' . If dryer do not stop automatically when the object leaving, please repeat this step to test a distance.
2. Machine will beeping 2-3 seconds when heating tube start / stop working. If operator do not have next step, it will beeping again and last 10 seconds.

  Items included
   1 set of 110V 1600W Flash Dryer head with sensor switch (006299)
