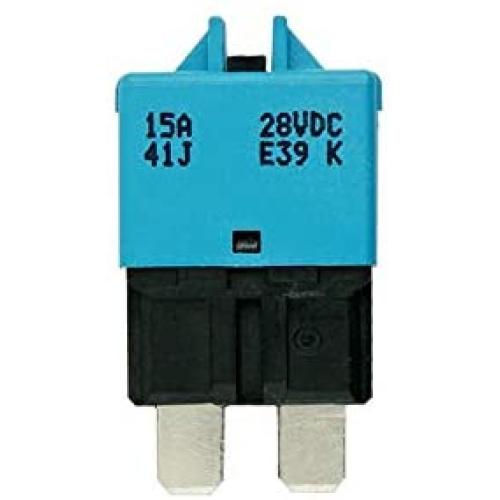

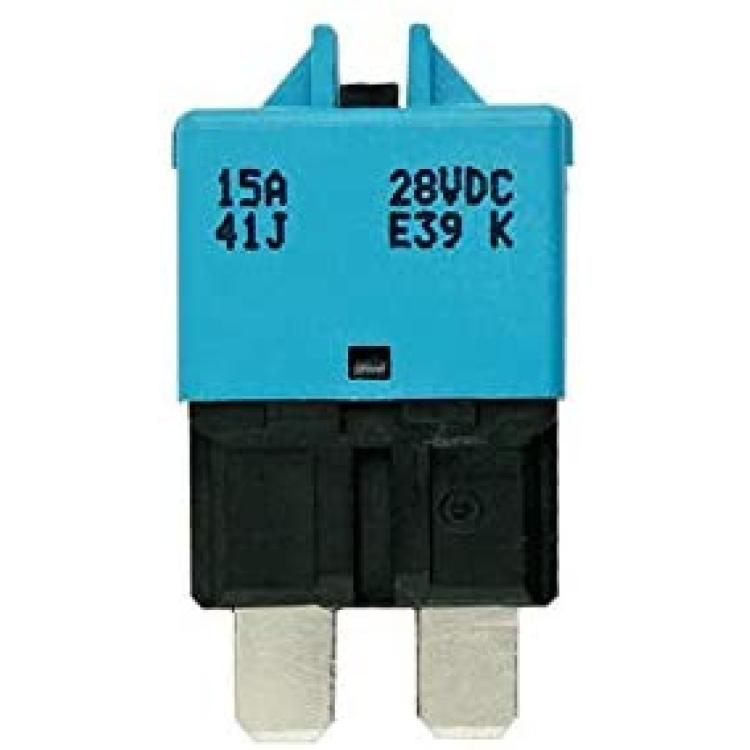

LENKRAD 5pcs 15A Circuit Breaker Blade Fuse Manual Reset RV Marine ATS Fuse 12V-28V DC (Blue)
Availability: In Stock
About this product

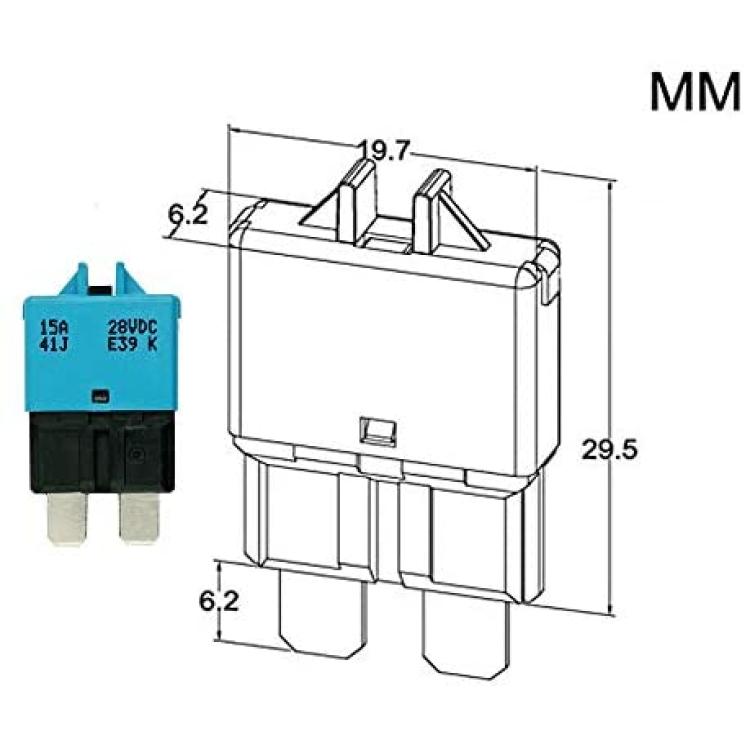

*→ Dimensions (L *W* T) is 29.5*19.7*6.2mm(1.16*0.78*0.24 inches)(approx).
*→ Regulatory Sepcification have SAEJ 553; SAEJ 1171 (Ignition Protected); UL1500.
*→ 5.2mm wide blades compatible with ATC/ATS/ATO type fuse blocks.
*→ With over-current protection and automatic recovery function.
*→ Convenient for examination and repair, easy to troubleshoot in outdoor; widely used in vehicle, car, marine , bus, ship, tanker, subway etc.
Description
Current: 15AÂ
Color: Blue
Voltage: 12V-28VdcÂ
Weight: 58gÂ
Size: 29.5*19.7*6.2mm (1.16*0.78*0.24 inches)
Type: Manual ResettableÂ

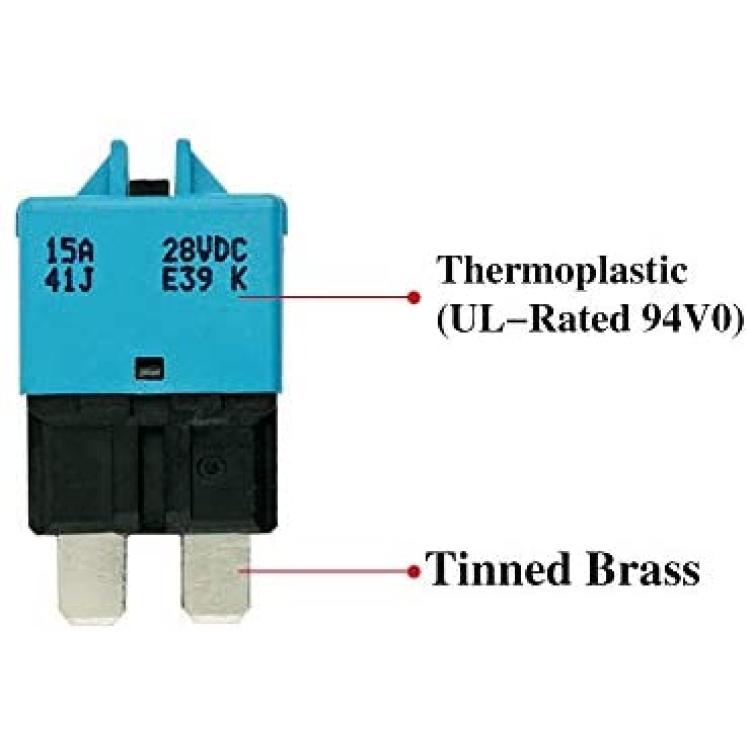

Material: UL-Rated 94V0 ThermoplasticÂ
Operating Temp: -40°C ~85°°CÂ
Storage Temp: -40°C to 125°CÂ
Feature:Â
1.5.2mm wide blades compatible with ATC/ATS type fuse blocks.

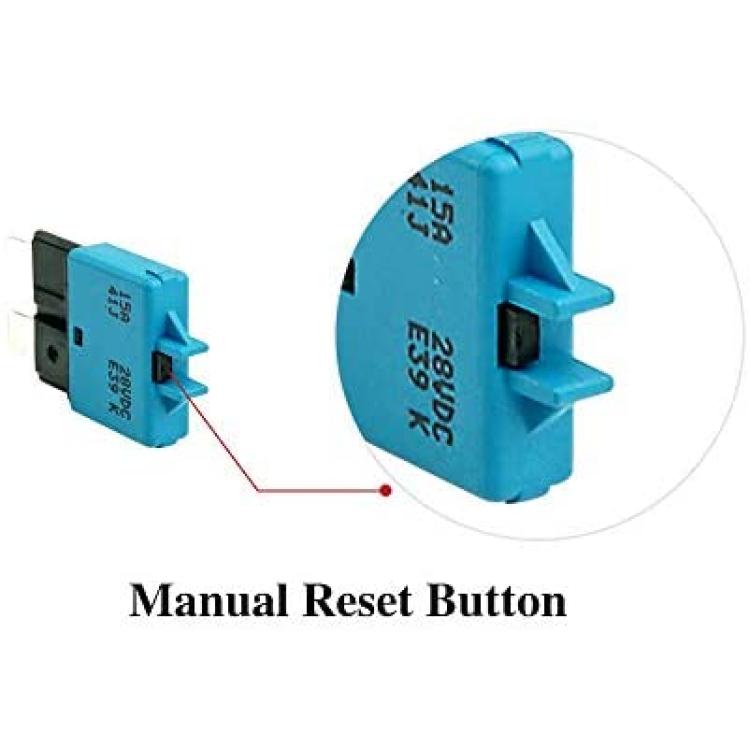

2.With manual reset function, you can restore the function, so that you do not have to frequently replace the fuse, to better protect your device.Â
3.Compliances: SAEJ553; SAEJ1171 (ignition protected) .
4.With over-current protection and automatic recovery function.Â
5.Useful item in any auto electrician's tool boxÂ
Packing included:Â
5 * 15A Circuit Breaker Fuse
