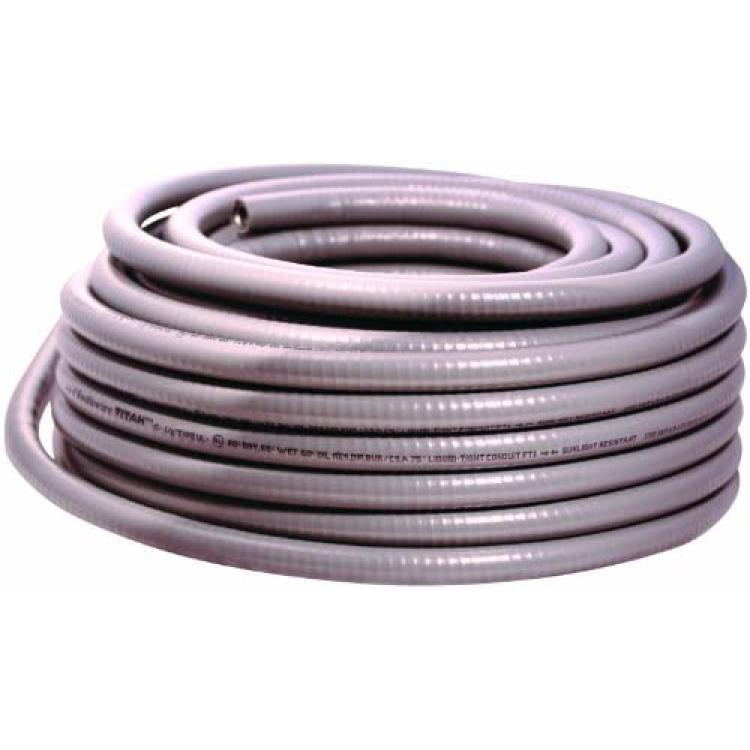

Southwire 55082603 Metallic Liquid tight Flexible Conduit
Availability: In Stock
About this product
*Smooth metal interior for easy wiring pulling
*UV sunlight resistant jacket, rated for temperature range of -30-Degree C to 80-Degree C, 60-Degree C Oil (-22-DegreeF to +176-DegreeF, 140-DegreeF Oil)
*Jacket seals out water, liquids, abrasives, alcohol, coolants, corrosive fumes and gases, grease, mineral acids, petroleum oils, salt air and spray
*Accepts standard metallic liquidtight fittings
*Rated for direct burial applications including concrete encasement
Description
Ultratite-Type UL 1/2-Inch Metallic Liquid tight Flexible Conduit. Liquid tight Flexible Metal Conduit. UL Listed. CSA Listed. Oil-Resistant. Sunlight-Resistant. Temperature Rated -30-Degree C to 80-Degree C. Ultratite-Type UL Metallic Liquid tight Flexible Conduit's metal core is made with a continuously interlocked hot-dipped galvanized steel strip with a heavy zinc coating. Trade sizes 3/8-Inch to 1-1/4-Inch contain an integral copper bonding conductor located within the interlocking strip. A thermoplastic jacket is extruded over the metal core which provides protection from sunlight, weather, temperature, liquids, oil and certain chemicals. Ultratite-Type UL Metallic Liquid tight Flexible Conduit manufactured by Southwire Company may be used for the installation and protection of conductors rated at 600-Volt nominal, or less, for conductors of motor feeders, branch, and control circuits, applications where the conditions of installation requires flexibility or protection from liquids, solids, vapors or weather in concealed or exposed locations, applications requiring movement and tight bends, for direct burial or for concrete encasement, for electric signs, where necessary for flexible connections within hazardous locations in accordance with NEC Article 501, 502 and 503, boat yards and marinas in accordance with NEC 555.13, cranes and hoists in accordance with NEC 610.11, elevators, dumbwaiters, escalators, moving walkways and stairways, chair lifts in accordance with NEC 620.21, for flexible connections to swimming pool, spa and hot tubs in accordance with NEC 680. UL listed per UL Standard for Safety 360, Canadian Standards Association CSA Listed, NEC Articles 350 and 300.No matter what the residential, commercial, or industrial application requires, you need look no farther. Southwire has just the right flexible metal conduit product you're looking for.
