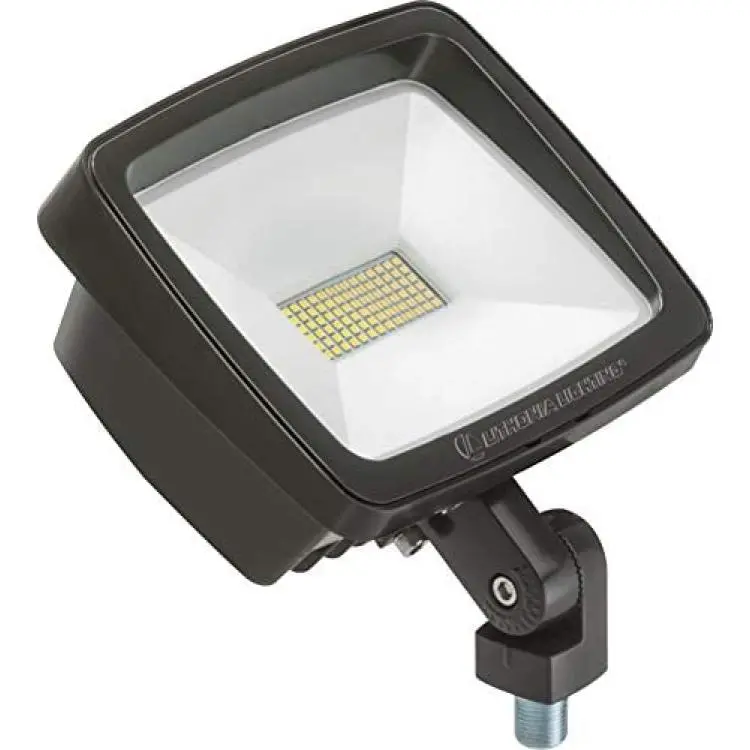

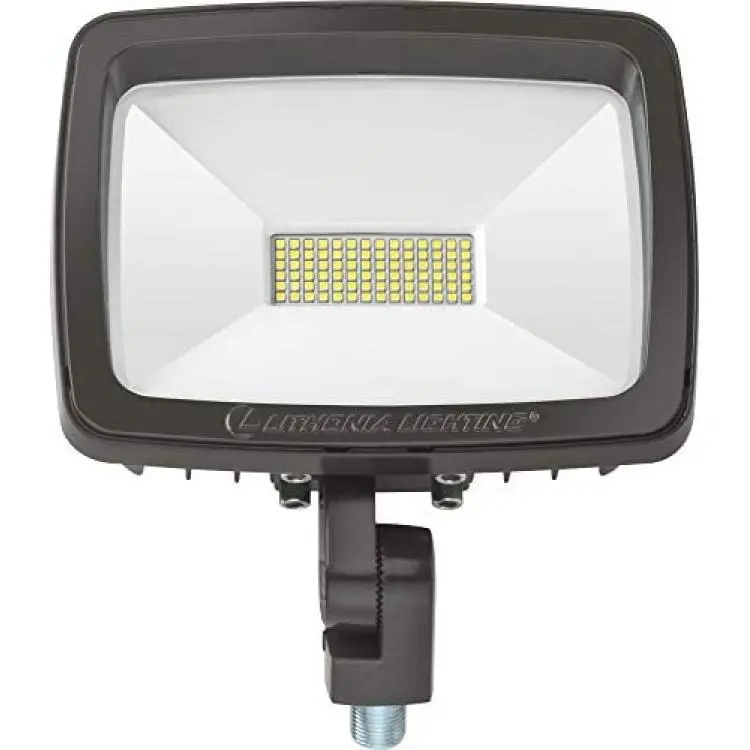

Lithonia Lighting TFX1 LED 40K MVOLT THK DDBXD M6 Flood Luminaire Knuckle Mount, 9.28-Inch, Dark Bronze

About this product

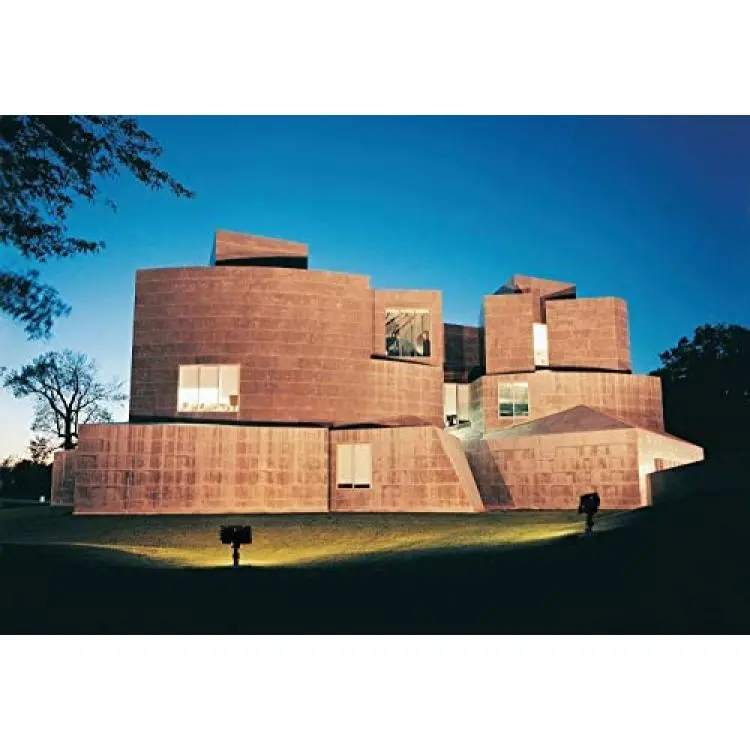

*INTENDED USE - The TFX1 LED floodlight is designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing metal halide or high pressure sodium lighting. The TFX1 is ideal for replacing up to 150W HID luminaires in parking lots, signage, yards, and other floodlighting applications. TFX luminaires deliver a uniform, wide flood light distribution.

*CONSTRUCTION - The TFX1 LED floodlight features a die-cast aluminum main body with optimal thermal management that both enhances LED efficacy and extends component life. The light engines and housing are IP66 rated, and sealed against moisture or environmental contaminants.

*ELECTRICAL - Light engine(s) configurations consist of high-efficacy LEDs and LED lumen maintenance is L84/100, 000 hours. 4000K and 5000K color temperature (CCT) options with minimum CRI of 70. Electronic drivers ensure system power factor >90% and THD

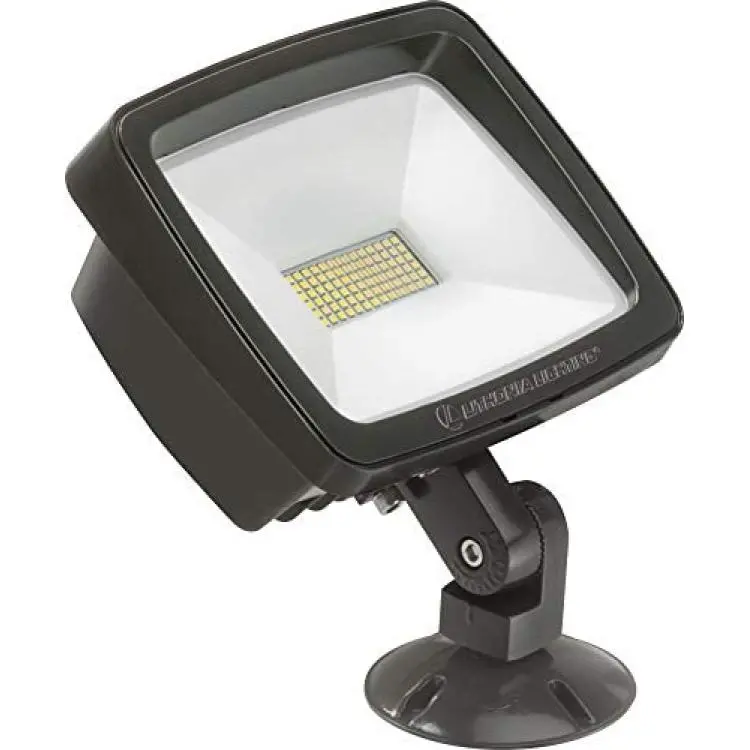

*INSTALLATION - The ¾” NPT threaded knuckle mount (THK) option can be mounted to conduit bodies or to 4” electrical boxes using the provided round mounting plate. The yoke mount (YK) option allows mounting to any solid surfaces and has a 30” SO cord. TFX luminaires are suitable for aiming in any orientation. TFX1 is rated for installation on ground. Can be tilted from 0° horizontal facing downwards, up to 180° horizontal facing upwards.
