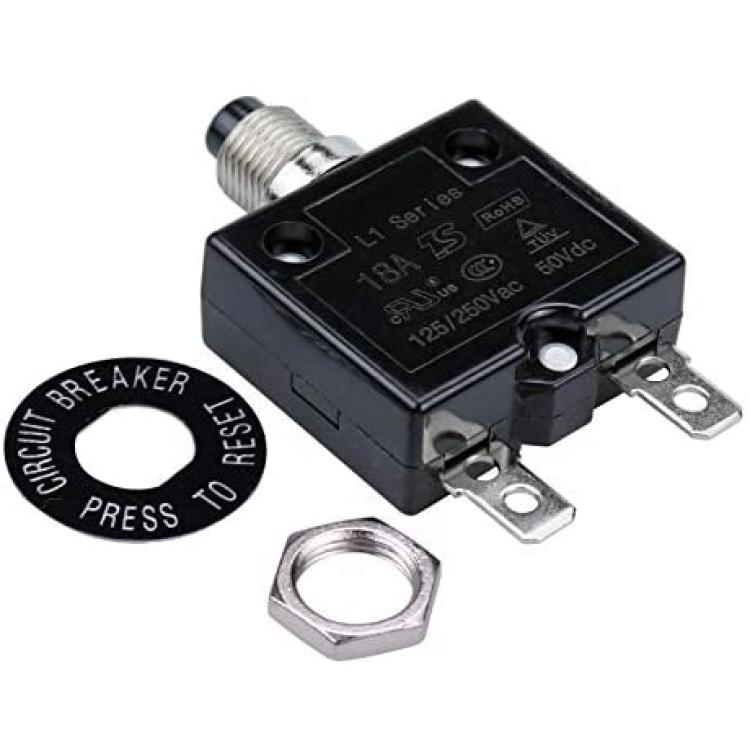

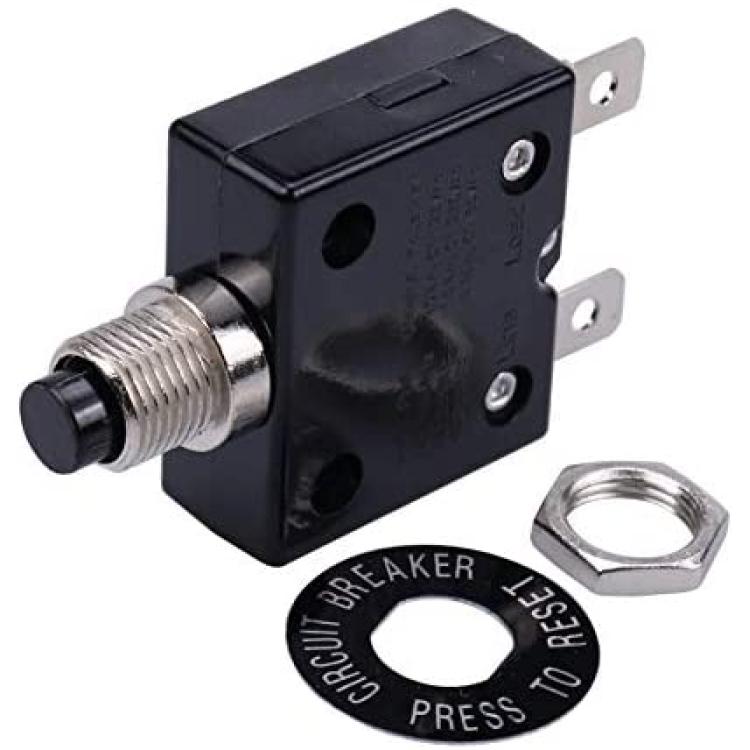

RKURCK 125-250V AC 50V DC Push Button Circuit Breaker 18 Amp Thermal Overload Protector L1 Series Manual Reset Thermal Circuit Breaker (18A)
About this product
*Compact, single pole, push-to-reset thermal circuit breakers
*Manual Reset 125-250V AC 50V DC Push Button Switch Thermal Circuit Breaker
*Operating Temperature: -10oC (14oF) to 60oC (140oF)
*Interrupt Capacity:1,000 Amps
*Widely used in household and commercial appliances, transportation, marine, telecommunications, power strips, audio-visual, medical, and power supplies
Description
Product description:
It is a compact, single pole, push-to-reset thermal circuit breakers
Widely used in household and commercial appliances, transportation, marine, telecommunications, power strips, audio-visual, medical, and power supplies
Specifications:
Item Type: Push-button Thermal Circuit Breakers
Series: L1
Weight?0.25 ounces

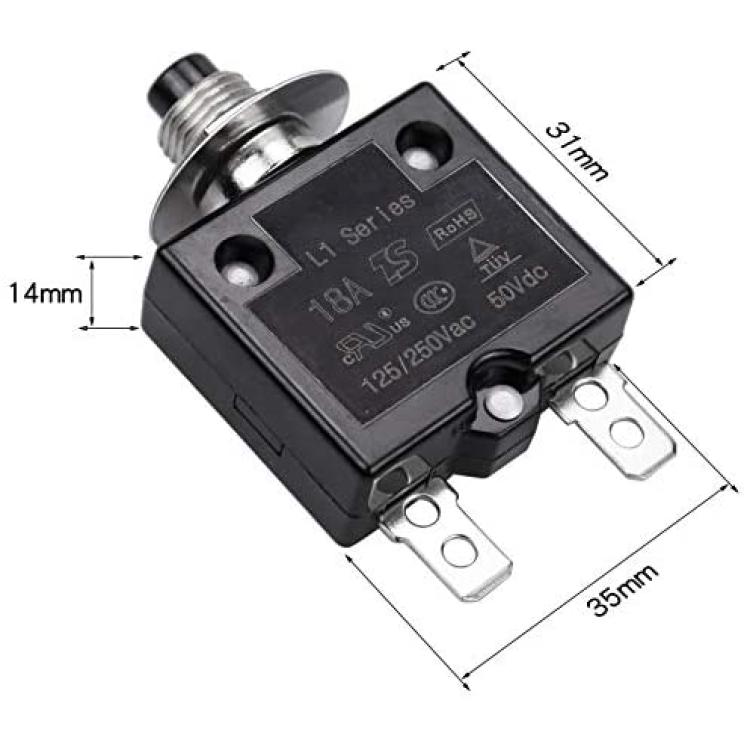

Size: 35 x 31 x 14mm/1.38 x 1.22 x 0.55"
Voltage: 125-250V AC; 50V DC
Current: 3A -50A
Rated current: 5A
Reset type: Manual reset
Operating temperature: -10? (14?)~ 60? (140?)
Interrupt capacity: 1000 amps
Widely used in household and commercial appliances, transportation, marine, telecommunications, power strips, audio-visual, medical, and power supplies
Package inckuded:
1 x Manual Reset Thermal Circuit Breaker 5A
1* Hex Nut
1* Grip Nut Ring
