HiLetgo 2pcs Round Lucky Rotary Suite Electronic Component Fortune CD4017 NE555 Interesting DIY Kit Wheel Electronic Parts Lucky 10

Electronic Fortune Wheel Kit Electronic Production Lucky Wheel DIY Kit
Kit Model : LUCKY-10
Supply voltage :3-5V
Dimensions : 58 * 58mm

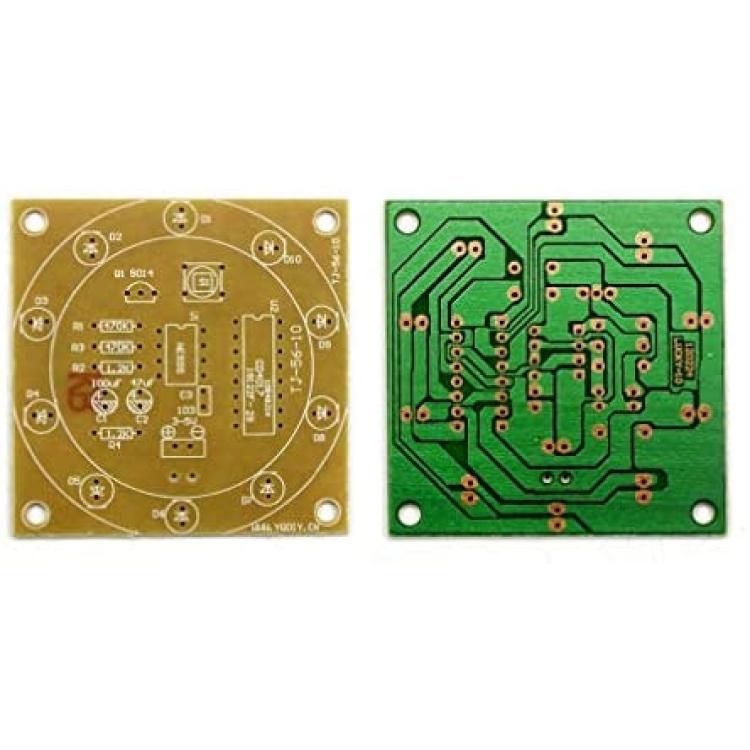

FR-4 circuit board uses military grade A material
1 Soldering pads are not easy to fall off several times
( Referring to bend under the circumstances which led to the non- human )
2 . Less prone to self- change bending , poor plate will change with time and the environment while bending .
3 More stable and reliable impedance
4 Plates and some stability tolerance parameters , A performance was very tough material , which is of interest in some other sheet relatively cheap price.

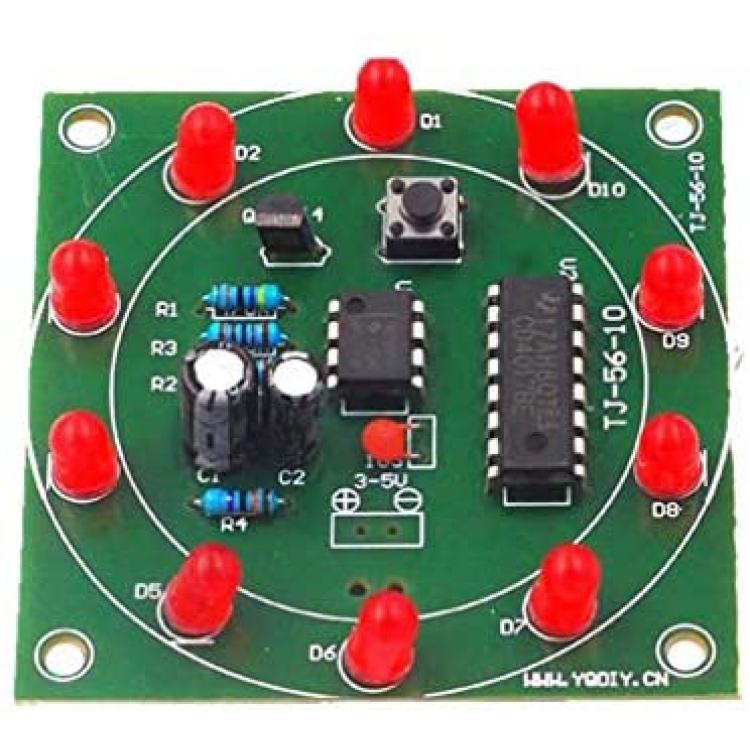

Function play: Wheel of Fortune is the first to predict when the disc stops rotating , which in the end will stop location tools . Estimated number is also used as games, electronic dice , lottery machines. Electronic Wheel of Fortune is electronically fulfilled the same function , the LED package 10 is configured to form a circle , when you click the button , the sequence of turns each LED light, flowing faster and slower , and finally stopped at a just the LED is no longer moving . Finally, the LED lights up when the player the same prediction , said " winning" .

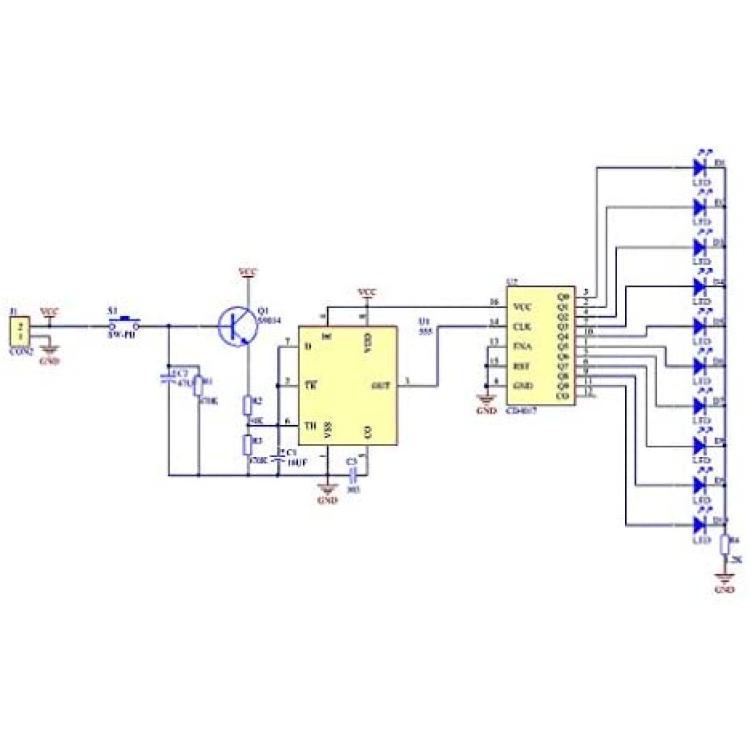

Note: Please contact us if you need the Schematic. We will send you via email to avoid Environment Destroy of Paper consumption.

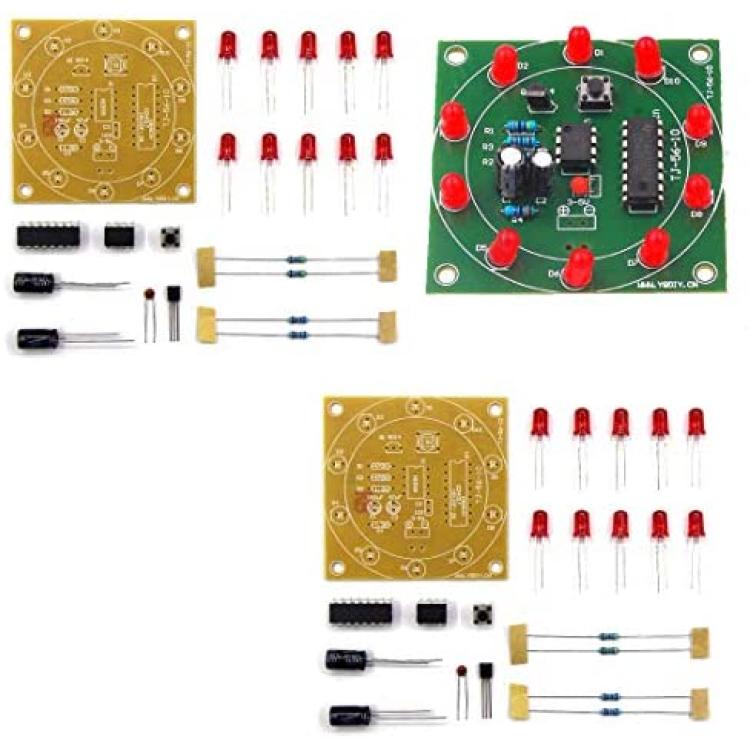

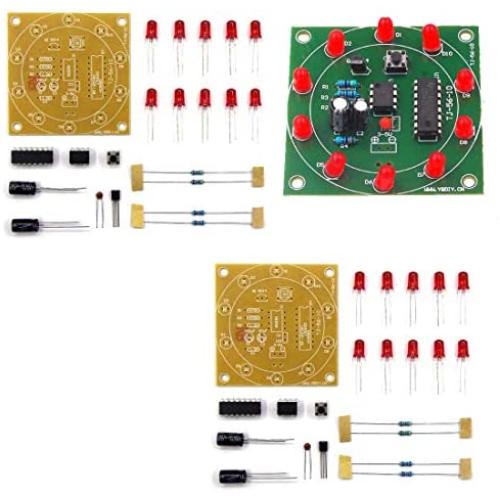

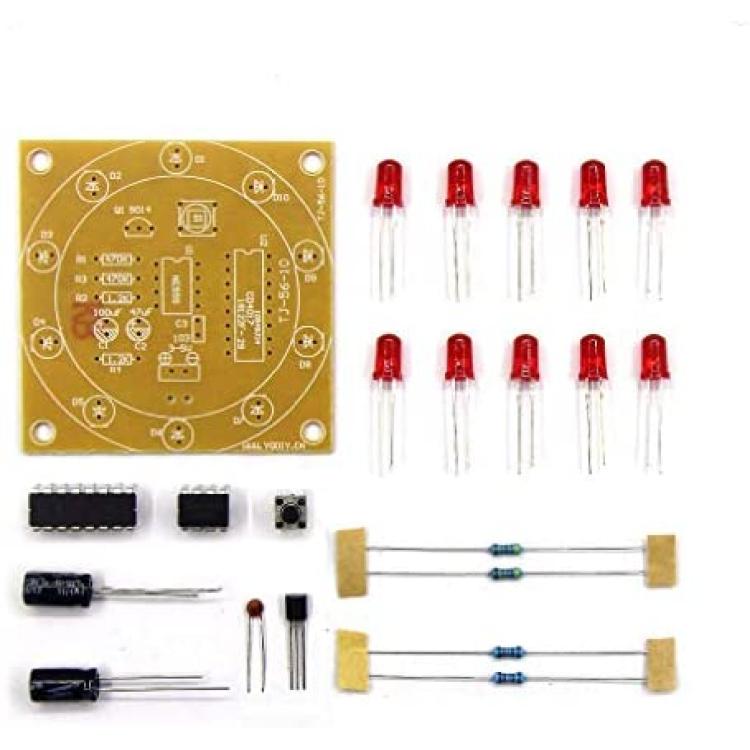

Package Includes:
2 * LUCKY-10 DIY Kits
