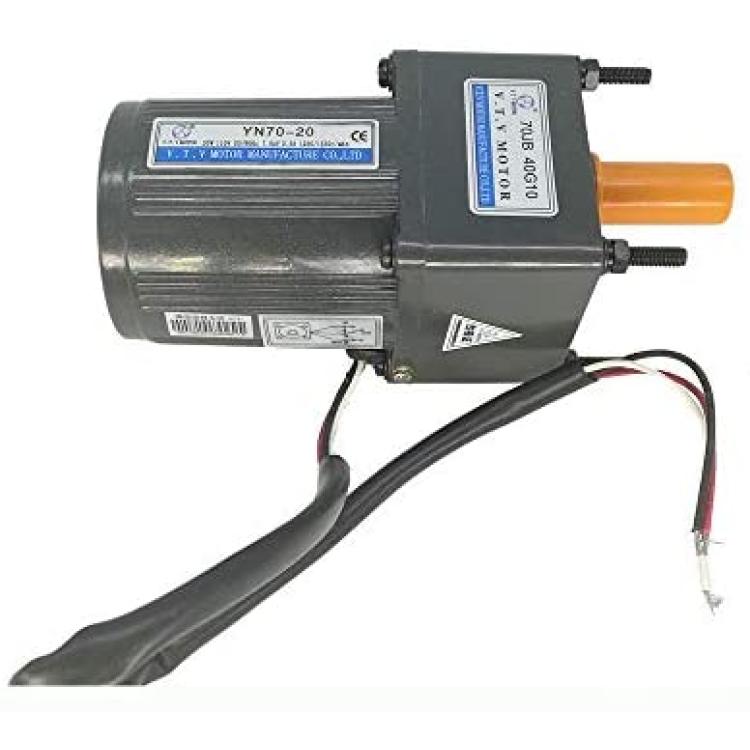

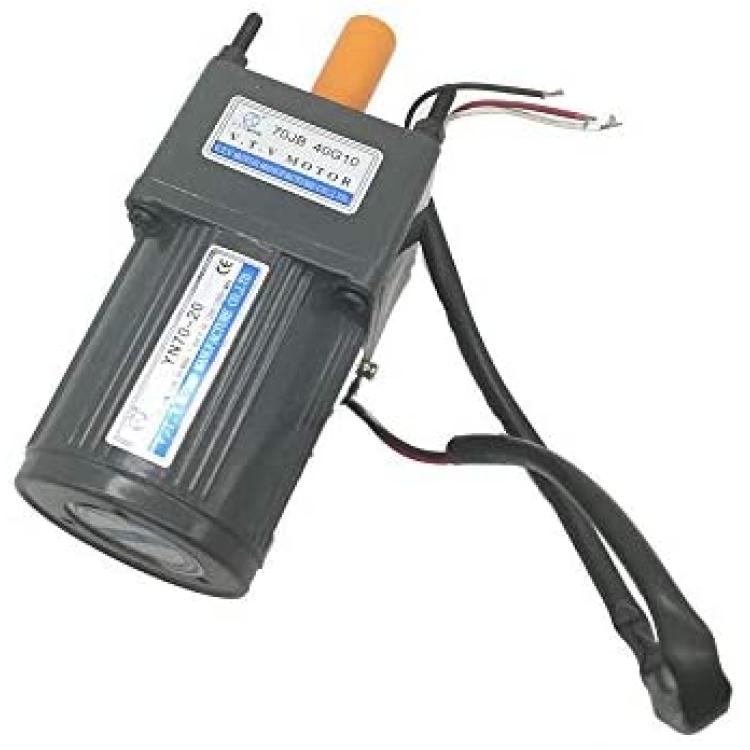

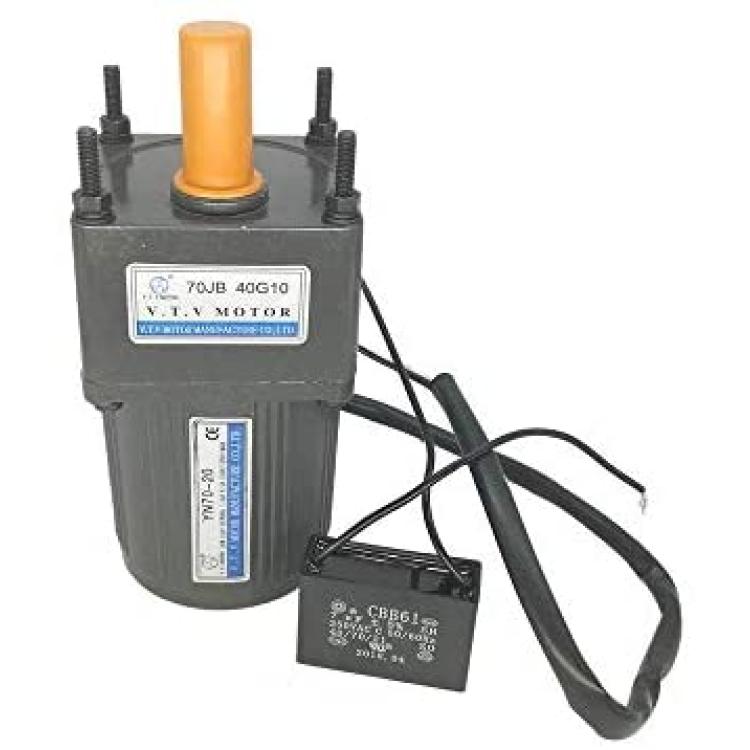

VTV 110 V AC Gear Motor Reducer 20 Watts YN70-20 70JB40G10 50 60 HZ 1:40 Ratio
About this product
*Small ac motor size 70*70mm
*Rated speed 1250 1550 RPM, 110 Vac induction motor
*10mm shaft Diameter gear ratio 1:40 box reducer 35 RPM out
*3 wires out motor
*VTV brand 20 W motor YN70
Description
Reversible single phase Induction Motor
Voltage:110V ac
Power:20W
Frequency:50 60Hz
Current:0.12A
Starting torque:70mN.m
Rated torque:46mN.m
Rated speed:1250RPM
Shaft Diameter:10mm gear shaft
you can order gear box part like 70JB20G10 too. please contact me.
You can order gear motor only at link: B07PKMLVYV
You can buy YN90-120 120 watts gear motor at belowing link:
B08FMJQ8Y7
