2 Pack IP68 Waterproof Electrical Junction Box Wire connection box for 2 or 3-pin Cables 0.2Inch(5mm）-0.35Inch(9mm) (2 Way)
About this product
*(T Type)Outdoor junction box with 3 poles glands joints, available for 2 or 3-pin cables, Cable Size: Ø 0.2Inch(5mm）-0.35Inch(9mm)
*Waterproof rating: IP68 Working temperature: -25 °C - 105 °C atmospheric pressure: (86-106) Kpa ,Specification: Voltages of 250V, Rated current 12A-20A

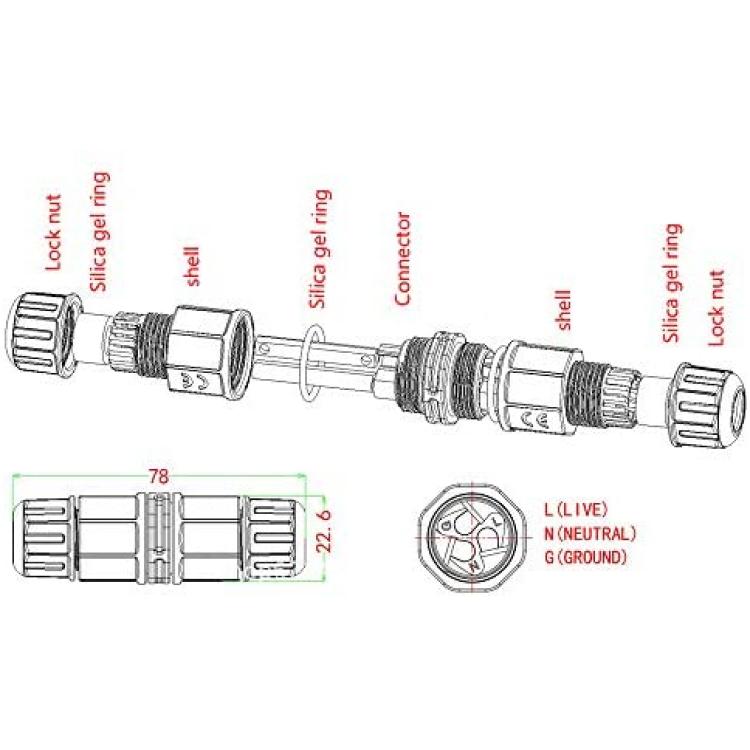

*Wiring method: Screw crimping type Maximum incoming wire diameter: Ø7mm Connector contact and plating: copper, copper-plated nickel-plated zinc plating. Contact plastic: nylon, 260 °C temperature resistant, V-0 flame retardant Waterproof rubber ring: silicone
*3 wire waterproof connector, N for Neutral wire,G for Ground wire,L for live wire, just unscrew the ends of waterproof connector and connect the corresponding line
*Suitable for fast connection to the outdoor lighting, and external wiring
Description
(T Type)Outdoor junction box with 3 poles glands joints, available for 2 or 3-pin cables, Cable Size:Â Ø 0.2Inch(5mm?-0.35Inch(9mm)
Waterproof rating: IP68 Working temperature: -25 °C - 105 °C atmospheric pressure: (86-106) Kpa ,Specification: Voltages of 250V, Rated current 12A-20A
Wiring method: Screw crimping type Maximum incoming wire diameter: Ø7mm Connector contact and plating: copper, copper-plated nickel-plated zinc plating. Contact plastic: nylon, 260 °C temperature resistant, V-0 flame retardant Waterproof rubber ring: silicone
3 wire waterproof connector, N for Neutral wire,G for Ground wire,L for live wire, just unscrew the ends of waterproof connector and connect the corresponding line
Suitable for fast connection to the outdoor lighting, and external wiring
