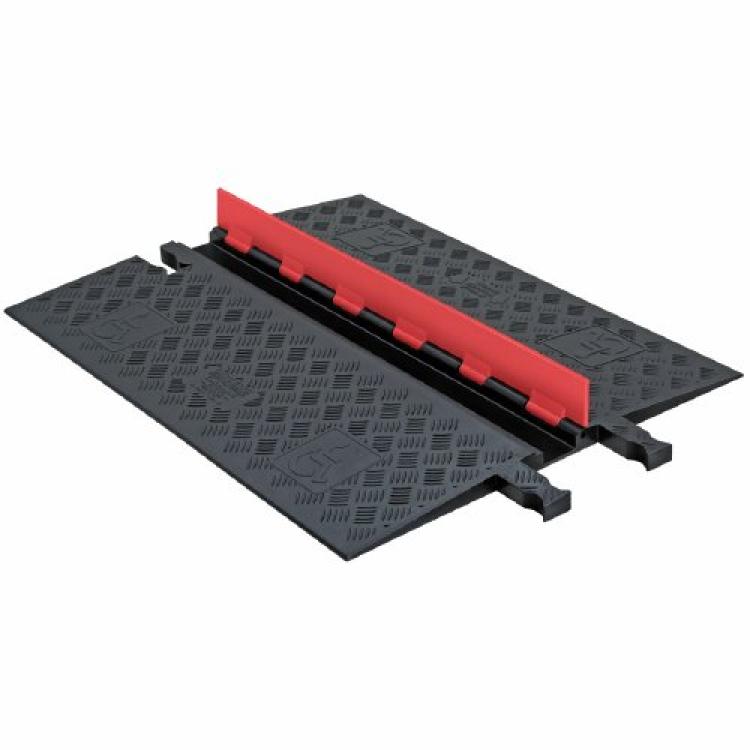

Guard Dog GD1X75-O/B Polyurethane Heavy Duty 1 Channel Low Profile Cable Protector with ADA Compliant Ramp, Orange Lid with Black Ramp, 36'' Length, 27.3'' Width, 1.25'' Height
Availability: Pre-Order, Inquiry Price
About this product
*Hinged lid for easy cable placement; polyurethane construction
*High load-bearing capacity; satisfies state and federal regulatory agencies
*5-Bar tread plate surface for maximum traction
*Safety warning symbols molded into lid; ADA compliant symbols molded into ramps
*Modular interlocking design is easy to setup, breakdown and store; universal safety colors for high visibility
Description
Heavy duty guard dog low profile cable protectors are ideal for stage, studio, and broadcast applications. They provide a safe and easy crossing for vehicle and pedestrian traffic and are perfect for valuable electrical and delicate multi-media electronic cables. These low profile protectors with dog-bone connectors feature low angle ada compliant black ramps with orange lid. Single channel allows cable/hose lines to be placed in their own protective channel while the low angle ramps allow effortless crossing. Weight 21.1 lbs. Material: polyurethane (UV stabilized). Operating temperature: -40 degree F to 120 degree F (-40 degree C to 48 degree C). Hinge pin material: reinforced fiberglass. Safety symbols: per ANSI. Z535.3-1991. Load capacity 1 channels: max load at 70 degree F (21 degree C). Load capacity per tire: 23,000 lbs. (10,432 Kg). Load capacity per axle: 46,000 lbs. (20,864 Kg). 2.25" Channel width by 0.75" channel height. Measures 36" length by 27.3" width by 1.25" height.
