Jabe UD-1200 Intelligent Lead-Free Soldering Station with 2.5S Rapid Heating Dual Channel Power Supply Heating System for Phone PCB Soldering Repair - 110V

Jabe UD-1200 Intelligent Lead-Free Soldering Station with 2.5S Rapid Heating Dual Channel Power Supply Heating System for Phone PCB Soldering Repair - 110V

Product Code: HSM14436
Availability: In Stock

US$134.99

- +

For Bulk Order, Get Better Price.

About this product

*UD-1200 intelligent lead-free digital welding table adopts a unique dual channel power supply heating system, it has a powerful central processing system

*With temperature calibration function, password lock function, time statistics function, display light switch function, recovery and other functions

*When welding, the host can automatically adjust the output power according to the size of the welding point and components and match the welding temperature

*Digital display aims to providing a more intelligence operating environment, can be directly to control the temp and working time, 130W power consumption can be heated within 2.5S, while the temp range of 50℃-520℃

*Package List: 1pc: Handle; 1pc Power Cable; 1pc: Brass Wire Ball; 1pc: Sponge; 1pc: Grounding Wire; 3pcs: Soldering Iron Tips; 1pc: Manual

Description

Product Introduction:

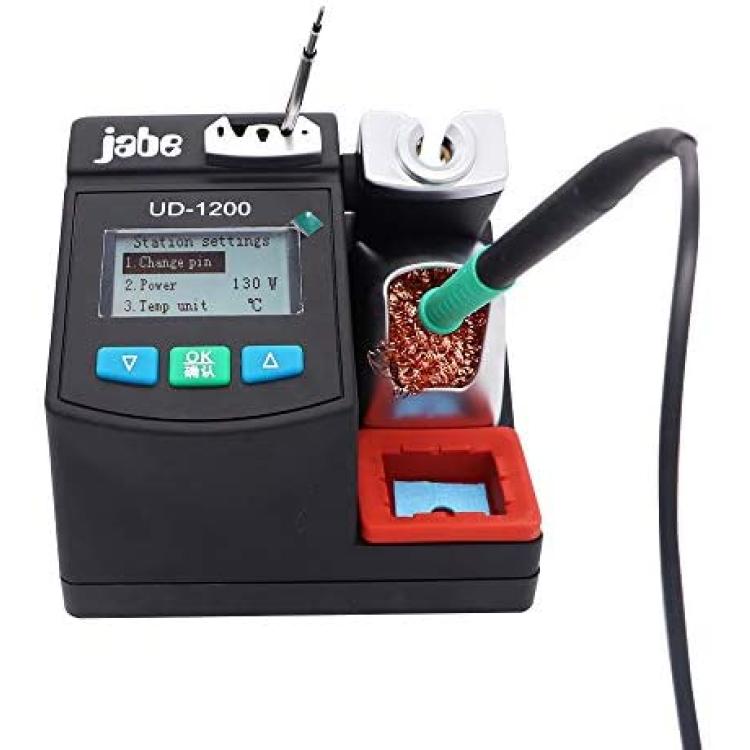

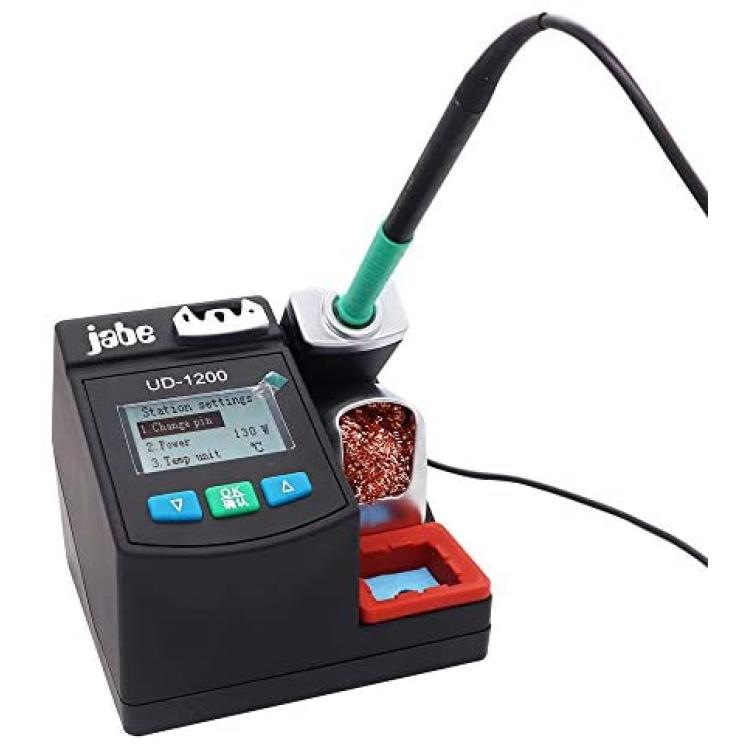

Jabe UD-1200 lead-free soldering station is a welding tool with exclusive heating system 2.5S rapid heating and intelligent sleep function for precision electronic applications, such as phone PCB welding tool

Specification:
Model: UD-1200
Power Consumption: 130W
Input Voltage: 110V / 220V
Output Voltage: 16V+16V
Range of Temperature: Decide by working mode(50?-520?)
Max Ambient Temperature: 40?
Temperature Stability: ±2?/Without air flow and no load
Tip to Ground Resistance: <2?(DC)
Tip to Ground Potential: <2mV(True RMS)
*Sharp or curved tip series, recommend the customer use a temperature of 350-380 ?, and adjust the compensation temperature to plus or minus 10 degrees".In this way, the iron head will be durable.

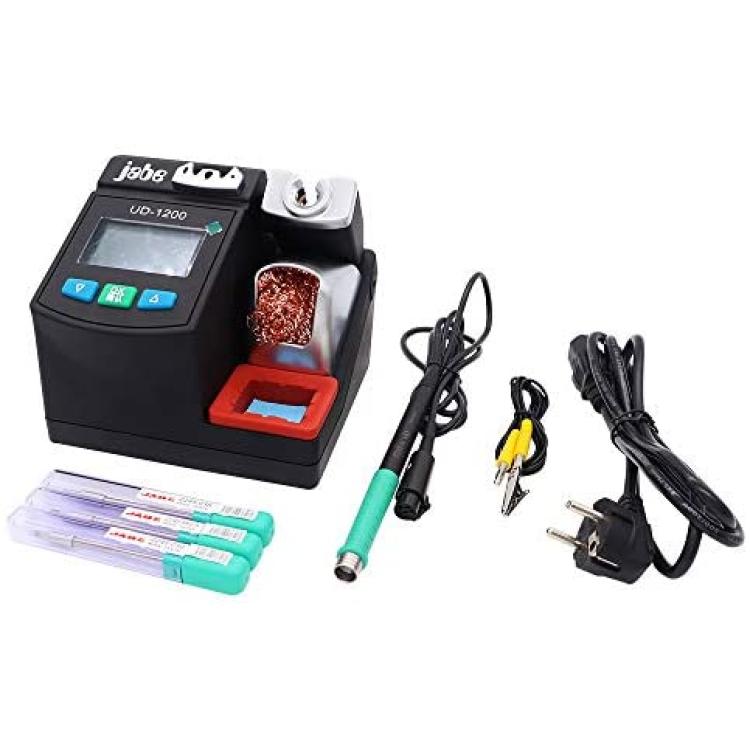

Package List:
1pc x Handle
1pc x Power Cable
1pc x Brass Wire Ball,
1pc x Sponge
1pc x Grounding Wire

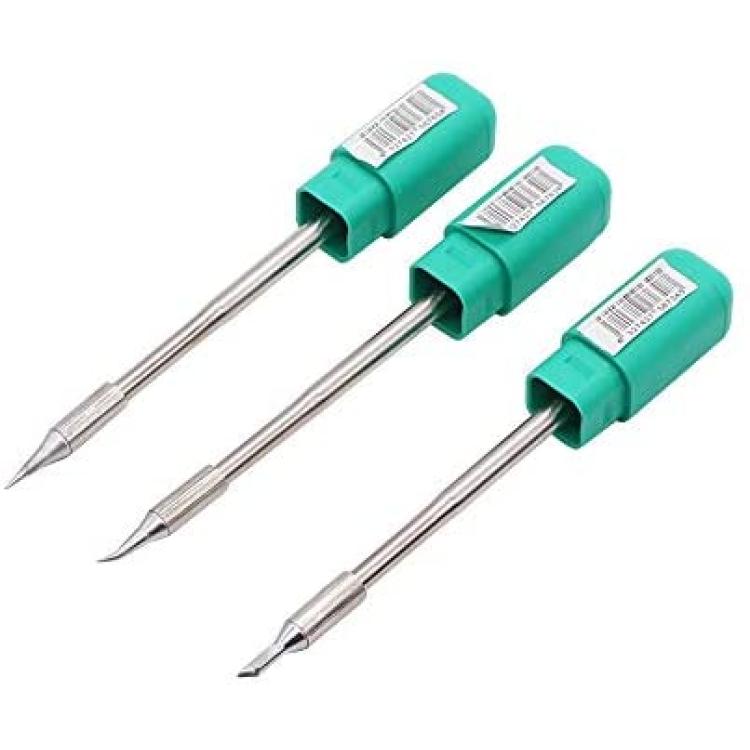

3pcs x Soldering Iron Tips
1pc x Manual
