SunFounder Electronic Soldering Station Analog SF-986 60W Analog Adjustable Temperature Thermostat Soldering Iron Station Kit with ON-Off Switch Soldering Stand Holder 4 Soldering Tips

Introduction
Being able to heat the soldering iron up in a few minutes, the SunFounder SF-986 Analog Soldering Station is convenient to use. As a common tool for electronic assembly, it has been widely used in household appliance repairing, IC and chip experiments, etc. It’s a necessity for open source hobbyists on DIY projects. With anti-static ability, the soldering station can be used with soldering iron and the operation is quite simple.

Note: For safety consideration, please follow the manual to operate.

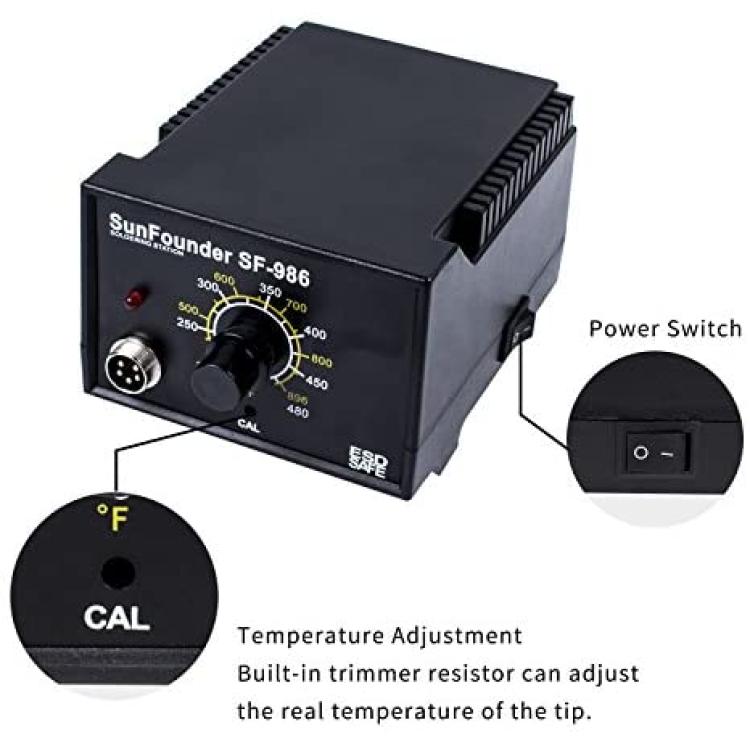

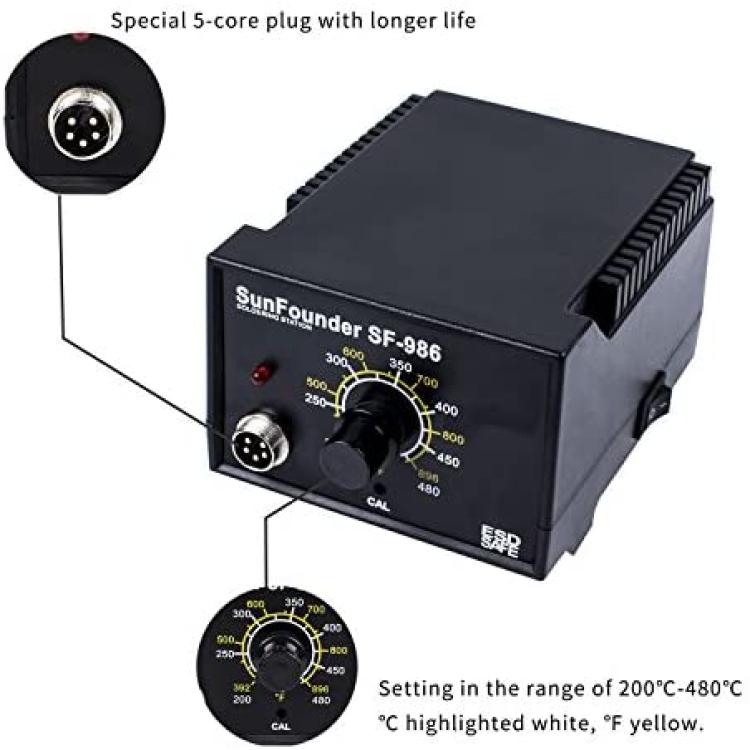

Specifications Soldering Station
Model: SF-986 Input Voltage: 110V (US standard), 220V (EU/UK standard)
Output Voltage: AC 24V
Temperature Range: 200-480? (392-896?)
Dimensions: 110 x 80 x 140mm (station only)
Weight: 1300g

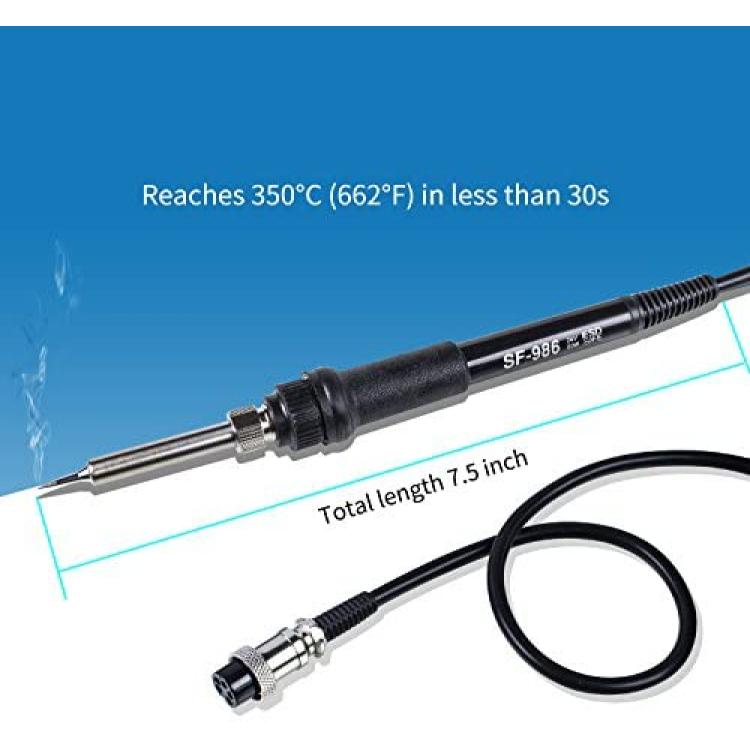

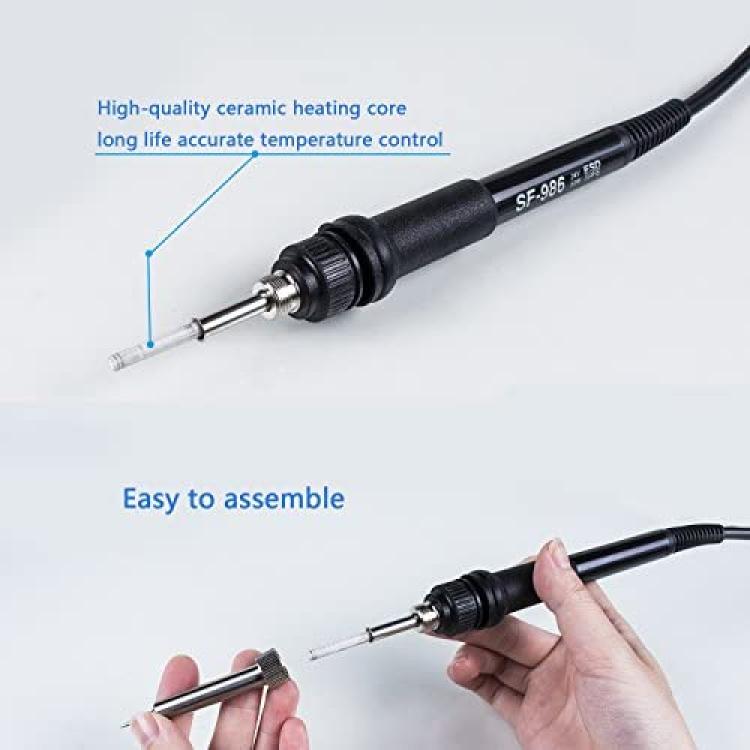

Soldering Iron
Model: 900M-ESD
Power Consumption: AC 24V @ 60W
Cord Length: 1.1m
Length: 170mm
Weight: 25g (without wire)

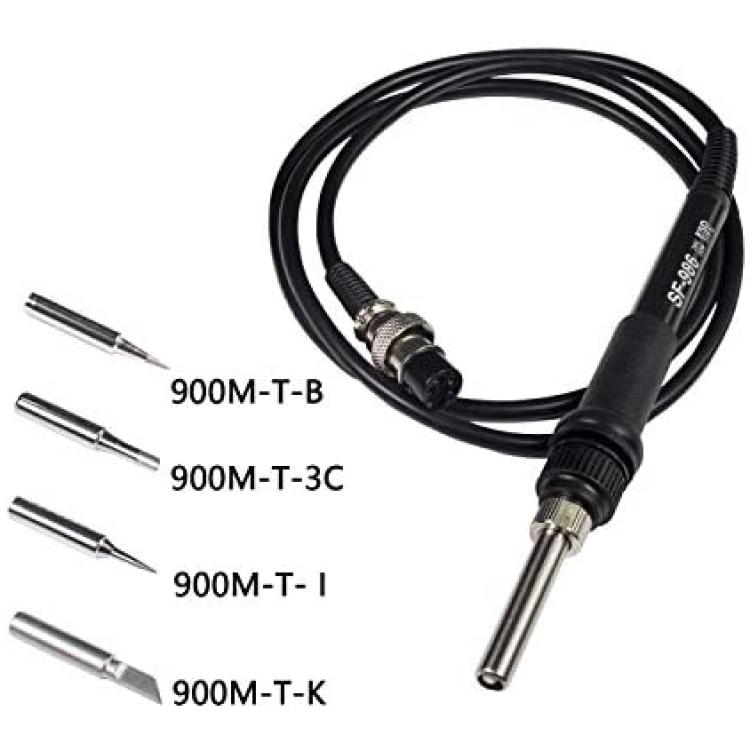

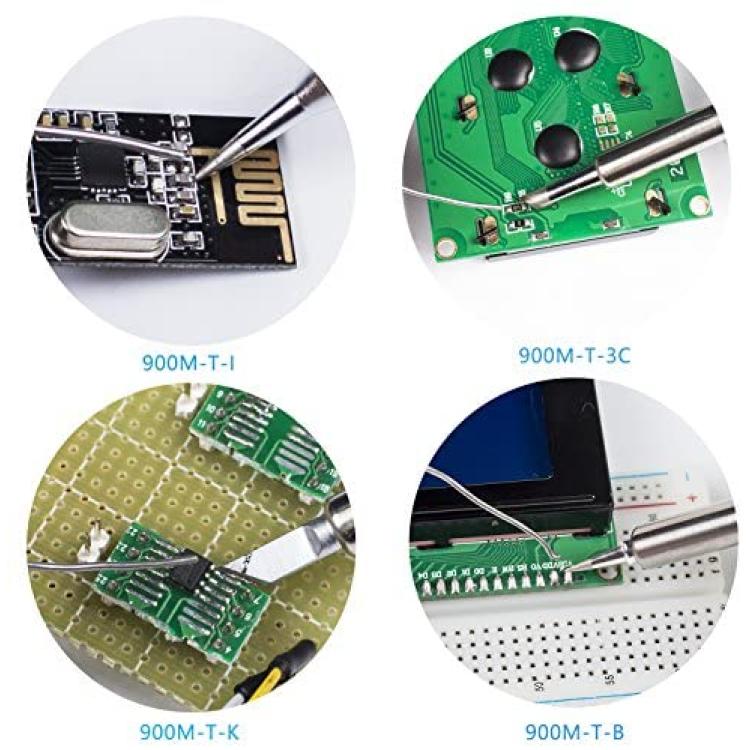

Applications of the soldering iron tip:
900M-T-B Soldering Tip: Suitable for general soldering, any soldering point of whatever size
900M-T-3C Soldering Tip: Fit for soldering components like resistor and diode, and SOP and QFP with large pitch.
900M-T-K Soldering Tip: For soldering about SOJ, PLCC, SOP, QFP, parts connected to the ground on a power source, change of soldered bridge, connectors, etc.
900M-T-I Soldering Tip: Applicable to fine soldering or operation in small space, as well as changing bridge during chip soldering.

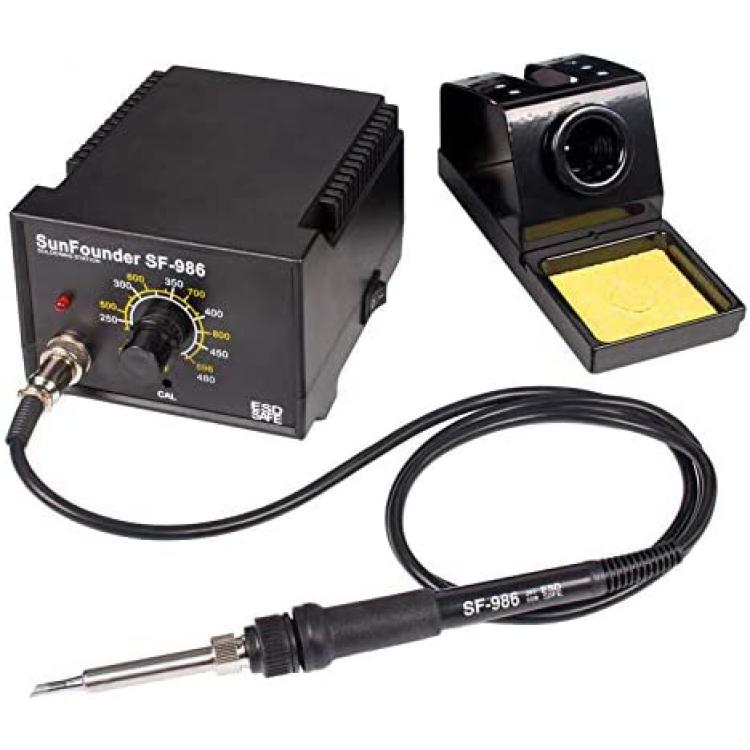

Package Included:
1 x Soldering Station
1 x Soldering Iron (900M)
1 x Soldering Iron Stand (with cleaning sponge)
1 x User Manual
1 x 900M-T-B Soldering Tip (assembled on the soldering iron)
1 x 900M-T-3C Soldering Tip
1 x 900M-T-K Soldering Tip
1 x 900M-T-I Soldering Tip
