Weewooday 10 Pieces AM312 Mini Human Sensor Module IR Pyroelectric Infrared PIR Motion Sensor Detector Modules DC 2.7V to 12V, Working Temperature Minus 20 Degrees Celsius to 60 Degrees Celsius

Features:

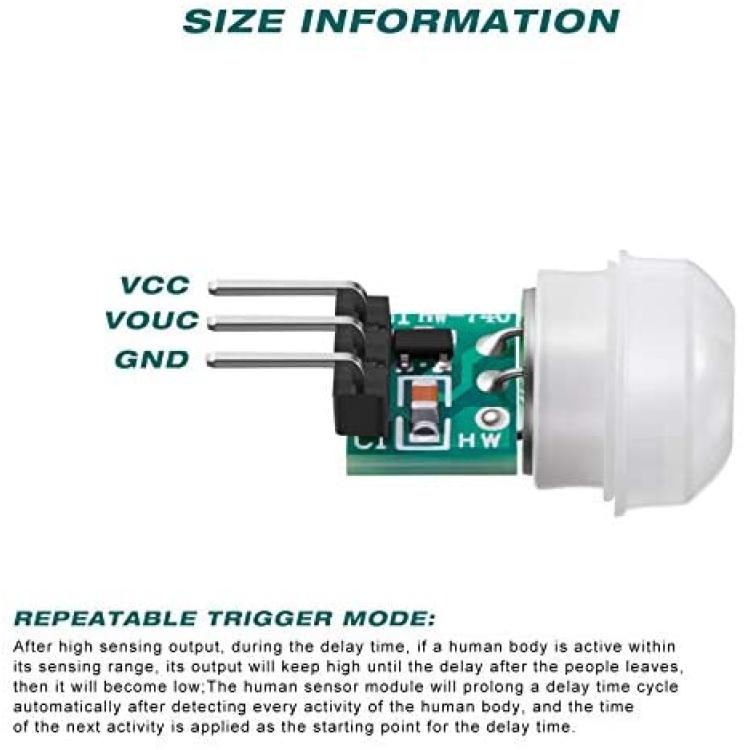

The trigger mode of these mini human sensor modules:
After high sensing output, during the delay time, if a human body is active within its sensing range, its output will keep high until the delay after the people leaves, then it will become low.
The human sensor module will prolong a delay time cycle automatically after detecting every activity of the human body, and the time of the next activity is applied as the starting point for the delay time.

Specifications:
Product model: AM312
Working voltage: DC 2.7V - 12V
Static power consumption: <0.1mA
Delay time: 2 seconds
Blocking time: 2 seconds
Trigger mode: repeatable
Sensing range: less than or equal to 100 degrees cone angle, 3 - 5 m (depend on the specific lens)
Working temperature: -20 degrees Celsius to +60 degrees Celsius

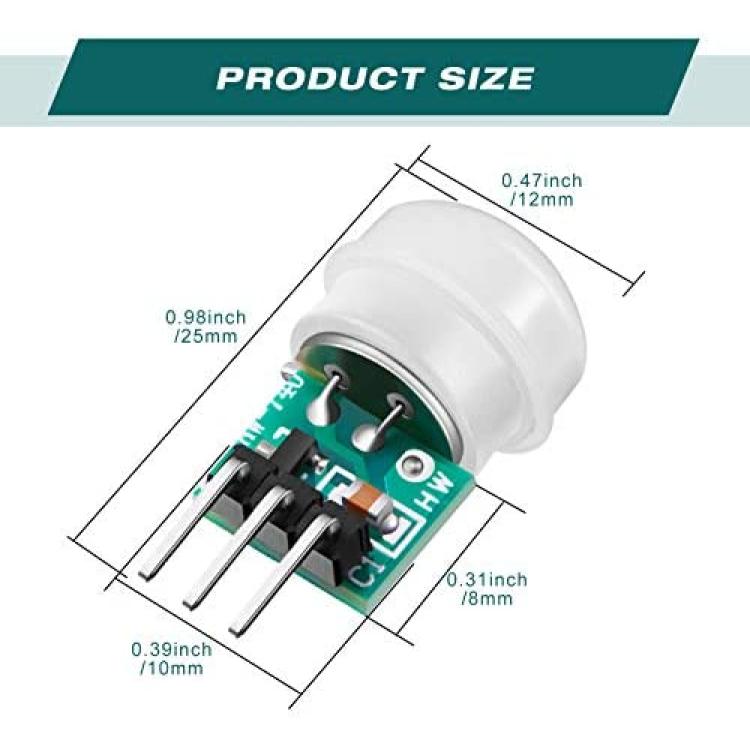

PCB size: approx. 10 x 8 mm/ 0.39 x 0.31 inch
Total size: approx. 25 x 12 x 12 mm/ 0.98 x 0.47 x 0.47 inch

Package includes:

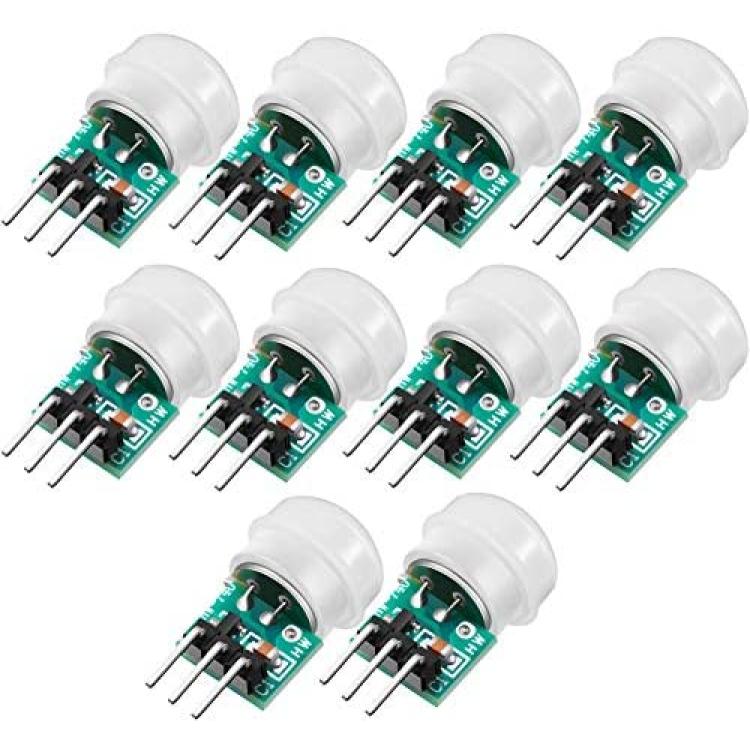

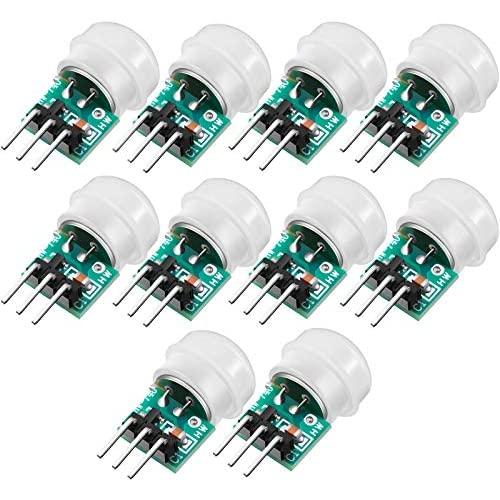

10 x Mini human sensor modules

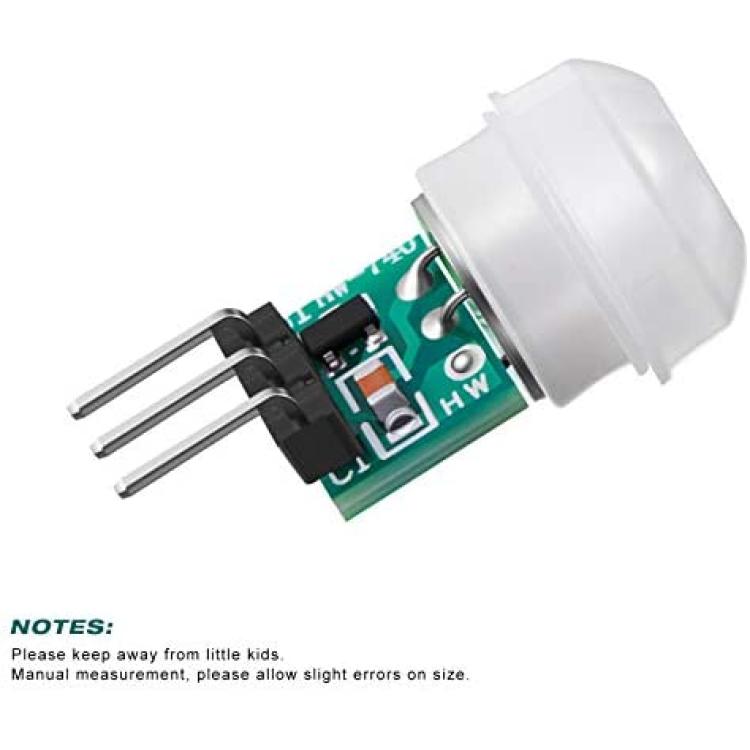

Notes:
Please keep away from little kids.
Manual measurement, please allow slight errors on size.
