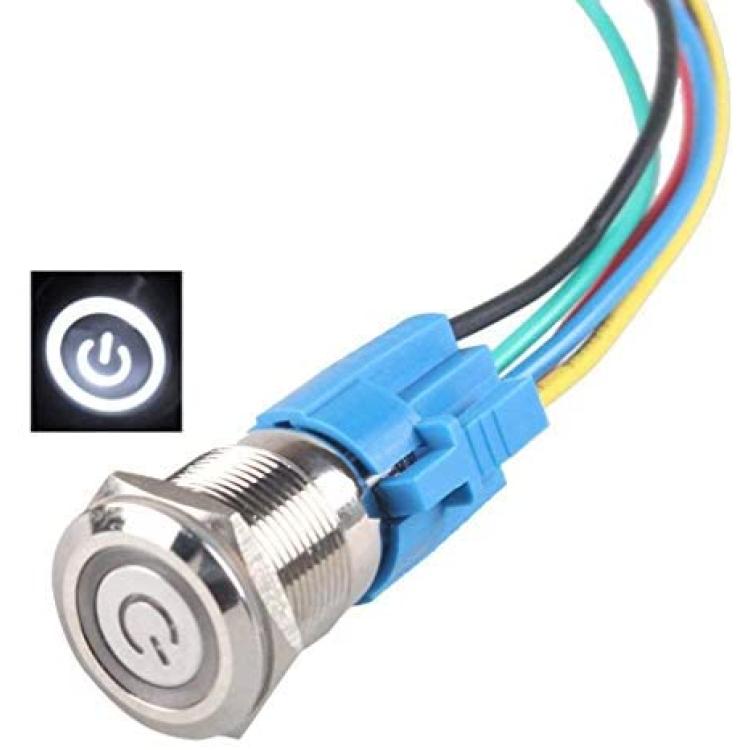

HiLetgo Latching Pushbutton Switch 16mm 5/8'' 12V-24V 5A Power Angel Eye LED Light Metal Toggle Switch with Wire Socket Plug
Availability: In Stock
About this product
*Mounting Hole Size: Φ16mm (5/8 Inch), Switch Combination : 1NO1NC.
*Operation Type : Latching/ Self-Locking [Push it - ON, push it again - OFF].
*Ring LED can be on all the time or only when switch is on which depends on how you wire it.
*Great for Electric Switch, Relay, Power Button Switch, Critical Lights, Chassis Lamp, Fog Lamps, Door Switch, Led Switch.
*High quality metal material & IP68 waterproof protection can be used in wet or dusty enviroment.
Description
Feature:
Mounting Hole Size: ?16mm (5/8 Inch)
Switch Combination : 1NO1NC
Operation Type: Latching/ Self-Locking [Push it - ON, push it again - OFF]
Head Shape: Flat
Enclosure Material: Nickel Plated Brass/ Stainless Steel
Lamp Type: Ring Illuminated
LED Color: White
LED Voltage: 12V-24V
Degree of Protection:IP65, IK08
Pins: 5
Switch Shell Color: Silver
Operation Pressure: about 4N
Package Include:
1* Latching Pushbutton Switch with Wire Socket Plug
